Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for 6 to 9 sector LTE cell site deployments for best SINR results. Utilizes a patented spherical lens design with 3 isolated high frequency (1695 – 2690 MHz ) dual -polarized beams. Each beam is made of four independent antennas and has 8 ports. There is independent tilt settings per beam 0-15°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695-2690 MHz |
| Gain | 18.5dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 40° |
| Horizontal Beamwidth (3dB level) | 23° |
| Vertical Beamwidth (10dB level) | 20° |
| Vertical Beamwidth (3dB level) | 12° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 3 |
| Number of Ports per Beam | 8 |
| Number of Ports Total | 24 |
| RET Per Beam | 0° to 15° |
| Upper Sidelobe Level | <-16dB |
| Azimuth Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >26dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
241.8 x 61.7 x 68.3 cm |
| 95.2 x 24.3 x 26.9 inch | |
|
Antenna Weight
|
82.0 kg |
| 181.0 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
2 position pipe mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm / 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150km/h
|
Frontal: 1046 N / 235.2 lbf |
| Lateral: 1331 N / 299.2 lbf | |
| Rear: 1227 N / 275.9 lbf | |
Pattern Results |
|

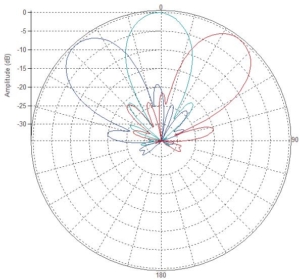

| High-Band Horizontal Pattern (1.80GHz)
|

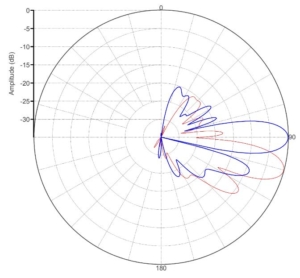

at tilt 0-15° Vertical Pattern (1.80GHz)
|
