Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for six to nine sector LTE cell site deployments, utilizes a patented spherical lens design with 3 isolated C-Band (3700 – 4200 MHz ) cross-polarized beams and 3 isolated H-Band (1695 – 2690 MHz) cross-polarized beams. Each beam has 4 ports, or 4×4 MIMO.
Each C-Band beam has 0° to 15° RET, and each H-Band beam has 0° to 15° RET.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 3700-4200 MHz | 1695-2690 MHz |
| Gain | 20.5 dBi | 20 dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 40° | 40° |
| Horizontal Beamwidth (3dB level) | 23° | 23° |
| Vertical Beamwidth (3dB level) | 8° | 12° |
| Beam Cross-over | 10dB typical | 10dB typical |
| Total Number of Beams | 3 | 3 |
| Number of Ports Per Beam | 4 | 4 |
| Total Number of Ports | 12 | 12 |
| RET | 0° to 15° | 0° to 15° |
| USLS (Upper Sidelobe Suppression) | <-16dB | <-16dB |
| Azimuth Sidelobe Level | <-18dB | <-16dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >26dB |
| Power Rating | 150W per port | 200W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 12 x 4.3-10 female | 12 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
210.8 x 61.7 x 68.3 cm |
| 83 x 24.3 x 26.9 inch | |
|
Antenna Weight
|
64kg/141.1lbs [w/o Bracket] |
| 65.6kg/144.6lbs [w/Bracket] | |
|
Bracket Weight
|
1.58 kg |
| 3.5 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard Pipe Mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 912 N / 205 lbf |
| Lateral: 1161 N / 261 lbf | |
| Rear: 1070 N / 240.6 lbf | |
Pattern Results |
|

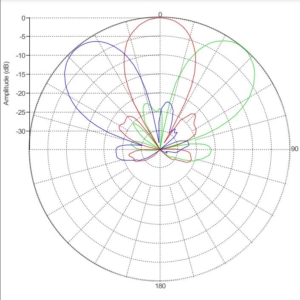

| C-Band Horizontal Pattern (3.7GHz)
|

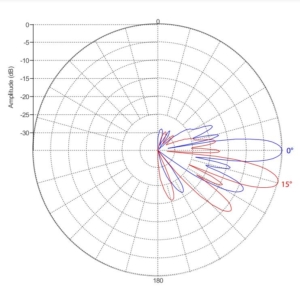

C-Band Vertical Pattern at 0° and 15° Tilt (3.7GHz)
|

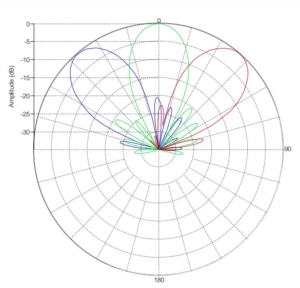

| High-Band Horizontal Pattern (1.8GHz)
|
High-Band Vertical Pattern at 0° and15° Tilt (1.8GHz)
|
