Description
Multi-Beam Dual Band Spherical Lens Antenna: 8 independent high-frequency (2.3 – 2.4GHz / 3.4 – 3.6GHz) cross-polarized beams with 2×2 MIMO support.
Each beam has independent tilt 0° to 15°.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 2.3 – 2.4GHz | 3.4 – 3.6GHz |
| Gain | 19.5dBi | 22.0dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 28° | 19° |
| Horizontal Beamwidth (3dB level) | 16° | 11° |
| Vertical Beamwidth (10dB level) | 28° | 19° |
| Vertical Beamwidth (3dB level) | 16° | 11° |
| Beam Cross-over | 3dB | 5.5dB |
| Total Number of Beams | 8 | |
| Total Number of Ports | 16 | |
| Tilt Per Cross-Pol | 0° to 15° | |
| First Sidelobe Level | -20dB Typical | -20dB Typical |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB |
| Power Rating | 150W per port | 150W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 4 x MQ4 | |
Mechanical Data |
|
| Dimensions (H x W x D) | 110.2 x 61.7 x 72 cm 43.4 x 24.3 x 28.4 inch |
| Antenna Weight | 36.2kg/79.8lbs |
| Bracket Weight | 2.10kg | 4.6lbs |
| Gross Weight | 38.3kg/84.4lbs |
| Radome Material | Fiber Glass |
| Mounting | Adjustable Clamps Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind loading @ 150km/hr
|
Units (N / lbf) Frontal: 473 / 106.3 Lateral: 638 / 143.4 Rear: 555 / 124.81 |
Pattern Results |
|
|

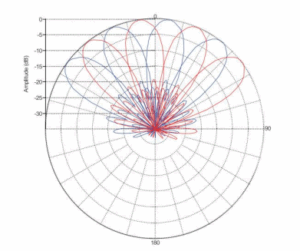

Horizontal Pattern (2.35GHz)
|
Vertical Pattern (2.35GHz) at tilt 0° and 15°
|

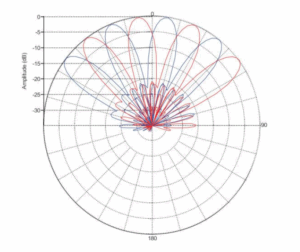

| Horizontal Pattern (3.5GHz)
|

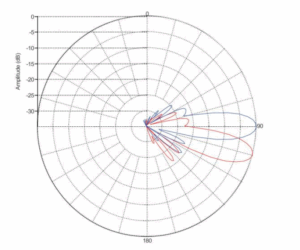

Vertical Pattern (3.5GHz) at tilt 0° and 15°
|
