Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for six to nine-sector LTE cell site deployments, utilizes a patented spherical lens design with 3 isolated F-Band (3300 – 4200MHz) cross- polarized beams. Each beam has 4 ports, or 4X4 MIMO. Each beam has RET from 0° to 30°.
Specifications
Technical Specifications |
|
| Frequency | 3300 MHz – 4200 MHz |
| Gain | 17dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB) | 25° |
| Horizontal Beamwidth (10dB) | 45° |
| Vertical Beamwidth (3dB) | 25° |
| Vertical Beamwidth (10dB) | 45° |
| Beam Cross-over | 8 dB typical |
| Total Number of Beams | 3 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 12 |
| Tilt Per Cross-Pol | 0° – 30° |
| First Sidelobe level | < -18dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 12 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 55.6 x 36.3 x 46.7 cm 21.9 x 14.3 x 18.4 inch |
| Antenna Weight |
9.9kg/21.8lbs |
| Bracket Weight |
2.10 kg | 4.6 lbs |
| Gross Weight |
12kg/26.4lbs |
| Radome Material | Polycarbonate |
| Mounting | Standard pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @ 150 km/h | N/Ibf Frontal: 155/34.8 Lateral: 209/47 Rear: 174/39.1 |
Pattern Results |
|
| Horizontal Beam Pattern (3.7GHz)
|

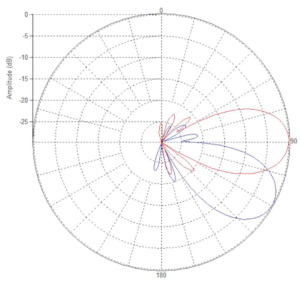

Vertical Pattern at 0° and 30° Tilt (3.6GHz)
|
