Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for seven sector LTE cell site deployments, utilizes a patented spherical lens design with 7 isolated C-Band (3700 – 4200MHz) cross-polarized beams. Each beam has 2 ports, or 2X2 MIMO & 0°-15° RET capability.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3700 – 4200 MHz |
| Gain | 22.5dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 21° |
| Horizontal Beamwidth (3dB level) | 12° |
| Vertical Beamwidth (3dB level) | 12° |
| Beam Cross-over | 6-8 dB typical |
| Total Number of Beams | 7 |
| Number of Ports per Beam | 2 |
| Total Number of Ports | 14 |
| Tilt Per Beam Remote Electrical Tilt (AISG 2.0) |
0°- 15° |
| First Sidelobe level | <-18dB |
| Front to Back Ratio | >30dB |
| Isolation Port to Port – Polarization | <-28dB |
| Isolation Port to Port – Beam | <-28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 14 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 63 x 62 x 72 cm
24.8 x 24.3 x 28.5 inch |
| Antenna Weight | 21.9 kg/48.3 lbs |
| Bracket Weight | 2.10 kg | 4.6 lbs |
| Gross Weight | 24 kg/53 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @150 km/hr | N/lbf Frontal: 253/56.9 Lateral: 347/78 Rear: 443/99.6 |
Pattern Results |
|

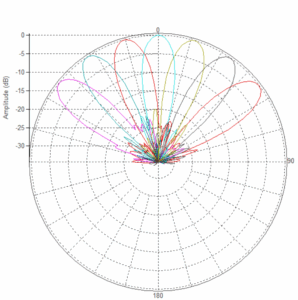

| Horizontal Pattern
|

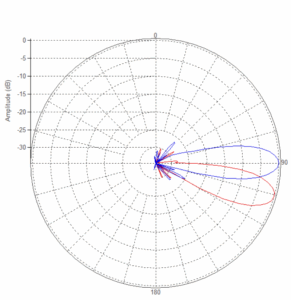

Vertical Pattern (0° & 15°)
|
