Description
Lens Technology Enabled™ Multi-Beam Tri-Band Base-Station Antenna utilizes a patented spherical lens design with
• 4 isolated F Band (3300MHz-4200MHz) cross-polarized beams,
• 4 isolated High Band (1695MHz-2690MHz) cross-polarized beams
• 2 isolated Low Band (698MHz-960MHz) beams
• Each beam has 2 ports to support 2×2 MIMO
• 0°-20° RET for F Band & High Band Beams
• 0°-40° RET for Low Band Beams
Specifications
Technical Specifications Per Beam |
|||
| Frequency | 3.3-4.2 GHz | 1695-2690 MHz | 698-960 MHz |
| Gain | 17dBi | 19dBi | 13.5dBi |
| VSWR | <1.5:1 | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB) | 34° | 30° | 60° |
| Horizontal Beamwidth (3dB) | 19° | 17° | 34° |
| Vertical Beamwidth (10dB) | 34° | 30° | 60° |
| Vertical Beamwidth (3dB) | 19° | 17° | 34° |
| Beam Cross-over | 7dB typical | 10dB typical | 10dB typical |
| Total Number of Beams | 4 | 4 | 2 |
| Number of Ports per Beam | 2 | 2 | 2 |
| Number of Ports Total | 8 | 8 | 4 |
| RET Per Cross-Pol | 0°-20° | 0°-20° | 0°-40° |
| First Sidelobe Level | <-16dB | <-16dB | <-16dB |
| Front to Back Ratio | >28dB | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB | >28dB |
| Power Rating | 150W per port | 150W per port | 150W per port |
| Intermodulation | <-153dBc | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Connector Quantity and Type | 8 x 4.3-10 female | 8 x 4.3-10 female | 4 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
140.9 X 61.7 X 72.1 cm |
| 55.5 X 24.3 X 28.4 inch | |
| Antenna Weight | 46.1 kg/101.6 lbs |
| Bracket Weight | 2.10 kg | 4.6 lbs |
| Gross Weight | 48.2 kg/106.2 |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount :
Compatible Pipe Diameter 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load Frontal | 462 N @ 151km/hr 104 lbf @ 151km/hr |
Pattern Results |
|

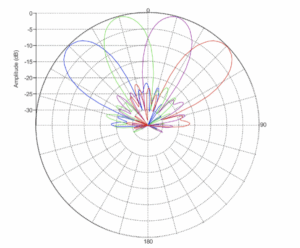

| F-Band Horizontal Pattern (3.6GHz)
|

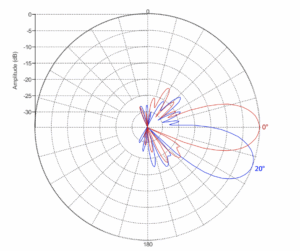

F-Band Vertical pattern (3.6GHz) at tilt 0° and 20°
 |

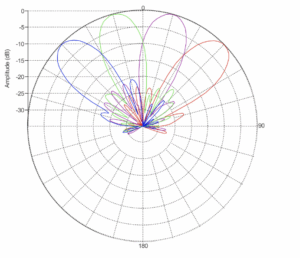

| High-Band Horizontal Pattern (1.92GHz)
|

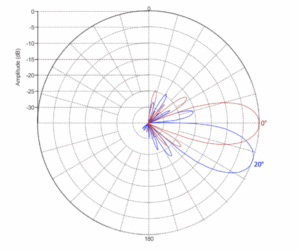

High-band Vertical Pattern (1.92GHz) at tilt 0° and 20°
 |

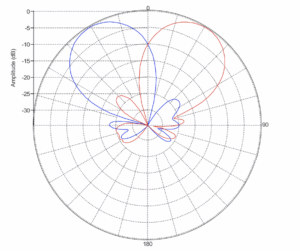

| Low-Band Horizontal Pattern (0.8GHz)
|

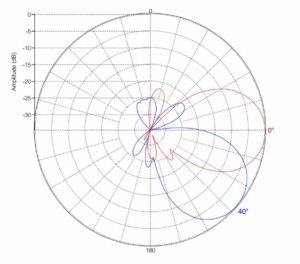

Low-band Vertical Pattern (0.8GHz) at tilt 0° and 40°
 |
