Description
Lens Technology Enabled™ Multi-Beam Tri-Band Base-Station Antenna utilizes a patented spherical lens design with 3 isolated F-Band frequency (3300-4200 MHz) cross-polarized beams, 3 isolated H-Band frequency (1695-2690 MHz) cross-polarized beams & 2 isolated LowBand frequency (698-960 MHz) cross-polarized beams. Each F, H & L Band beams have 2 ports to support 2×2 MIMO. There are three independent tilt settings per beam (0-30° for F-Band, 0-30° for H-Band and 0-40° for Low-Band) for each pair of cross-polarized elements.
Specifications
Technical Specifications Per Beam |
|||
| Frequency | 3.3-4.2 GHz | 1695-2690 MHz | 698-960 MHz |
| Gain | 16dBi | 17.8dBi | 13.5dBi |
| VSWR | <1.5:1 | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB) | 45° | 40° | 60° |
| Horizontal Beamwidth (3dB) | 25° | 23° | 34° |
| Vertical Beamwidth (10dB) | 45° | 40° | 60° |
| Vertical Beamwidth (3dB) | 25° | 23° | 34° |
| Beam Cross-over | 8dB typical | 10dB typical | 10dB typical |
| Total Number of Beams | 3 | 3 | 2 |
| Number of Ports per Beam | 2 | 2 | 2 |
| Number of Ports Total | 6 | 6 | 4 |
| RET Per Cross-Pol | 0°-30° | 0°-30° | 0°-40° |
| First Sidelobe Level | <-16dB | <-16dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB | >26dB |
| Power Rating | 150W per port | 200W per port | 250W per port |
| Intermodulation | <-153dBc | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Connector Quantity and Type | 6 x 4.3-10 female | 6 x 4.3-10 female | 4 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
139 x 61.7 x 72 cm |
| 54.8 x 24.3 x 28.4 inch | |
|
Antenna Weight
Bracket Weight
|
44.3 kg / 97.7 lbs |
| 1.58 kg /3.5 lbs | |
|
Gross Weight
|
45.9 kg |
| 101.2 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @150km/hr | N/lbf
Frontal: 695 /156.2 Rear : 998/224.4 |
Pattern Results |
|

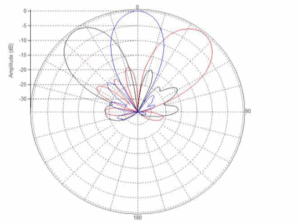

| F-Band Horizontal Pattern (3.6GHz)
|

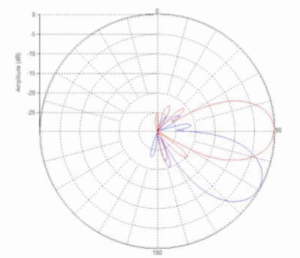

F-Band Vertical Pattern at 0° and 30° Tilt (3.6GHz)
 |

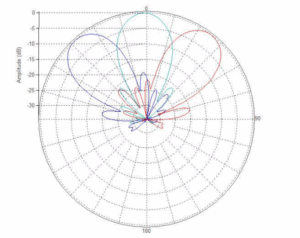

| High-Band Horizontal Pattern (1.92GHz)
|

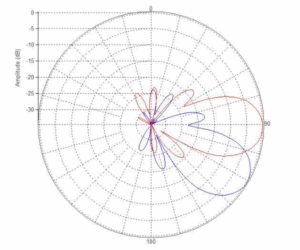

High-Band Vertical Pattern 0° tilt and 30° tilt (1.92GHz)
 |

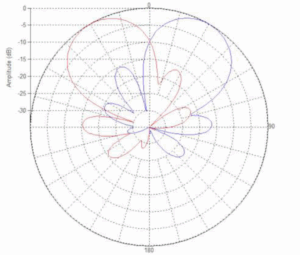

| Low-Band Horizontal Pattern (0.8GHz)
|

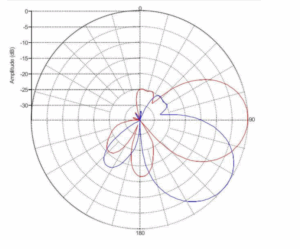

Low-Band Vertical Pattern 0° tilt and 40° tilt (0.8GHz)
 |
