Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for 6 to 9 high-band sector LTE cell site deployments and 3 to 6 low-band sector LTE cell site deployments for best CINR results. Utilizes a patented spherical lens design with 3 isolated high-frequency (1695-2690MHz) cross-polarized beams and 2 isolated low-frequency (698-960MHz) cross-polarized beams. Each beam has 2 ports. There are two independent tilt settings per beam (0-30° for HB and 0-40° for LB) tilt for each pair of cross-polarized elements.
*Optional Packages:
a) MS-MBA-3.2-H2-L2-M: AISG 2.0 Remote Electrical Tilt, multi RET
b) MS-MBA-3.2-H2-L2-S: AISG 2.0 Remote Electrical Tilt, single RET
Specifications
Technical Specifications Per Beam |
||
| Frequency | 1695-2690 MHz | 698-960 MHz |
| Gain | 17.8 dBi | 14.2 dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 40° | 60° |
| Horizontal Beamwidth (3dB level) | 23° | 34° |
| Vertical Beamwidth (10dB level) | 40° | 60° |
| Vertical Beamwidth (3dB level) | 23° | 34° |
| Beam Cross-over | 10dB typical | 10dB typical |
| Total Number of Beams | 3 | 2 |
| Number of Ports per Beam | 2 | 2 |
| Number of Ports Total | 6 | 4 |
| Tilt Per Cross-Pol | 0° to 30° | 0° to 40° |
| First Sidelobe Level | <-16dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >26dB |
| Power Rating | 200W per port | 250W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 6 x 4.3-10 female | 4 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
99.8 x 61.7 x 72 cm |
| 39.3 x 24.3 x 28.4 inch | |
|
Antenna Weight
|
32.4kg/71.1lbs [w/o Bracket] |
| 33.8kg/74.5lbs [w/Bracket] | |
|
Bracket Weight
|
1.58 kg |
| 3.5 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard position pipe mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm / 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150km/h
|
Frontal: 701 N (157 lbf) |
| Lateral: 1007 N (226 lbf) | |
Pattern Results |
|

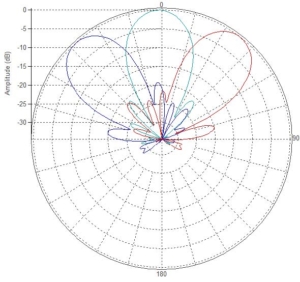

| High-Band Horizontal Pattern (1.80GHz)
|

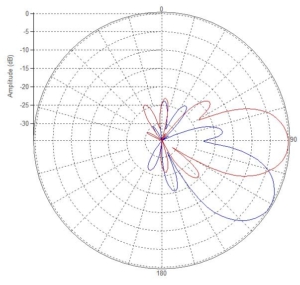

High-Band Vertical pattern 0° tilt and 30° tilt (1.80GHz)
|

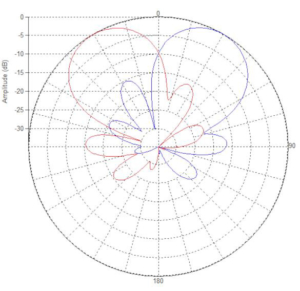

| Low-Band Horizontal Pattern (750MHz)
|

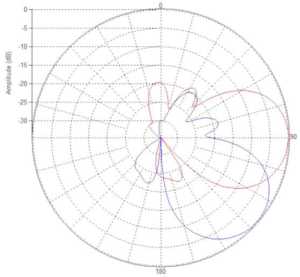

Low-Band Vertical Pattern 0° tilt and 40° tilt (750MHz)
|
