Description
Multi-Beam Mini Lens Antenna: 12 independent high – frequency (3.4 – 4.0GHz) cross-polarized beams with 2X2 MIMO.
Each beam has independent tilt 0° to 15°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3.4 – 4.0GHz |
| Gain | 22.5dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 21 – 18° |
| Horizontal Beamwidth (3dB level) | 12.3 – 10.4° |
| Vertical Beamwidth (10dB level) | 21 – 18° |
| Vertical Beamwidth (3dB level) | 12.3 – 10.4° |
| Beam Cross-over | 2.2 – 2.5dB |
| Number of Ports Per Beam | 2 |
| Total Number of Beams | 12 |
| Number of Ports Total | 24 |
| Tilt Per Cross-Pol | 0 – 15° |
| Sidelobe level | <-20dB typical |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 |
Mechanical Data |
||
| Dimensions (H x W x D) | 110 x 62 x 72 cm | |
| 43.4 x 24.3 x 28.4 inch | ||
| Antenna Weight | 37.1kg/81.8lbs [w/o Bracket]
38.7kg/85.3lbs [w/Bracket] |
|
| Bracket Weight | 1.58 kg / 3.5 lbs | |
| Radome Material | Fiber Glass | |
| Mounting | Adjustable Clamps | |
| Compatible Pipe Diameter | ||
| 6.1 – 11.4 cm | ||
| 2.4 – 4.5 inch | ||
Environmental Ratings |
||
| Humidity | 95% RH @ +30°C | |
| Temperature | -40°C to +70°C | |
|
Wind Load @ 150 km/h
|
Frontal: 386 N / 86.8 lbf | |
| Lateral: 523 N / 117.6 lbf | ||
| Rear: 452 N / 101.6 lbf | ||
Pattern Results |
||

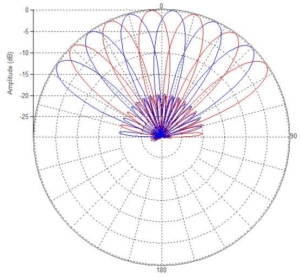

| Horizontal Pattern (3.4GHz)
|

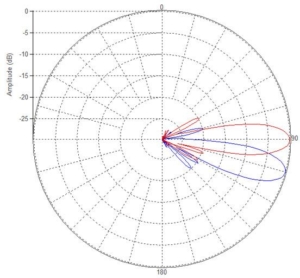

Vertical Pattern (3.4GHz) at tilt 0° and 15°
|
|
