Description

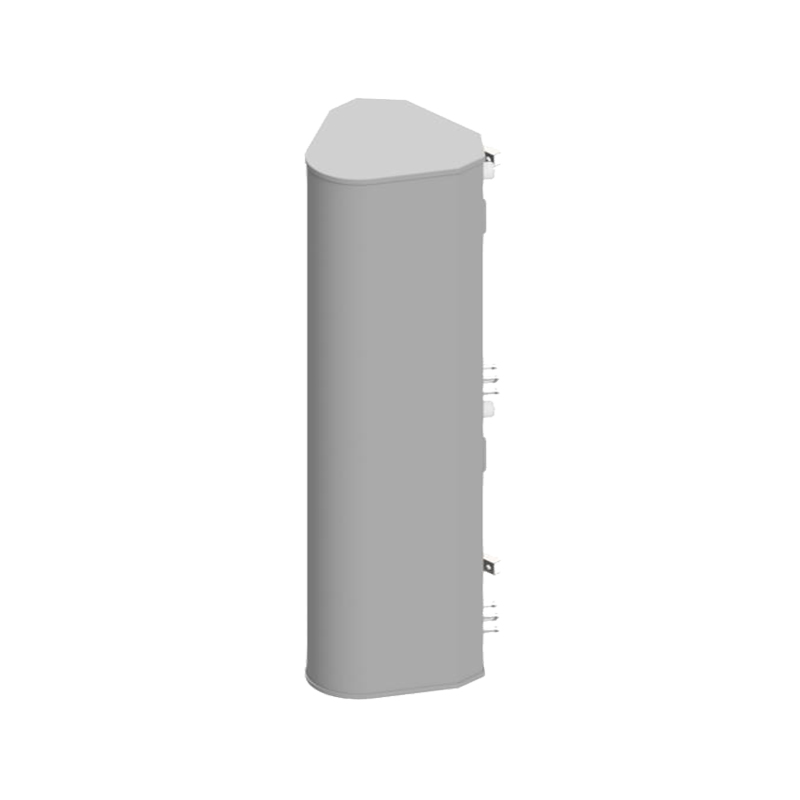

Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for multi-sector cell site deployments, utilizes a patented cylindrical lens design with 4 isolated C-Band (3700–4200MHz) cross-polarized beams. Each Beam has 4 ports or 4×4 MIMO and RET capability from 2°-10°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3700 – 4200 MHz |
| Gain | 22 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB Level) | 30° |
| Horizontal Beamwidth (3dB Level) | 18° |
| Vertical Beamwidth (3dB level) | 6.5° |
| Beam Cross-over | 8dB typical |
| Total Number of Beams | 4 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 16 |
| Tilt Per Beam Remote Electrical Tilt (AISG 2.0) |
2° – 10° |
| Upper Side Lobe Suppression | 16dB |
| Azimuth Sidelobe Level | -18dB |
| Front to Back Ratio | 28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 145.8 x 40.6 x 37.6 cm 57.4 x 16 x 14.8 inch |
| Antenna Weight | 28 kg 61.7 lbs |
| Radome Material |
ABS |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 432.7/97.3 Lateral: 586/132 Rear : 500/112 |
Pattern Results |
|
| Horizontal Pattern (3.7GHz)
|

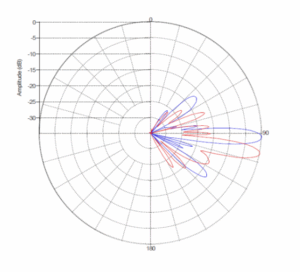

Vertical Pattern at 2° and 10° (3.7GHz)  |
