Description

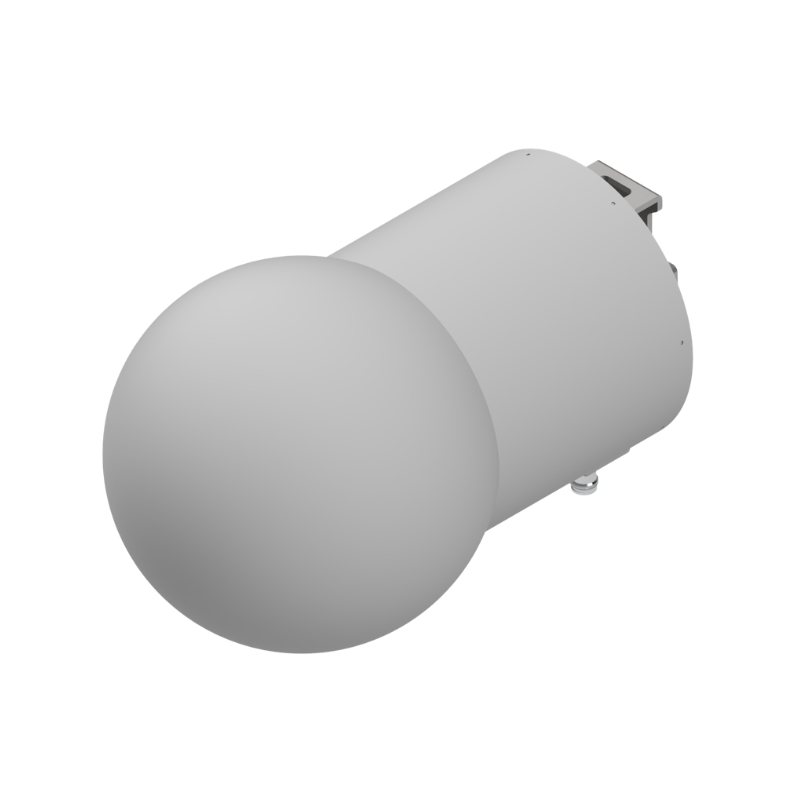

Lens Technology Enabled™ Base-Station Antenna perfect for stadium applications, utilizes a patented spherical lens design with 1 isolated F-Band Frequency(3300-4200MHz) cross-polarized beam. Beam has 2 cross-polarized ports for supporting 2X2 MIMO and low side-lobe levels.
Specifications
Technical Specifications Per Beam
| Frequency |
3300 – 4200 MHz |
| Gain |
19dBi |
| VSWR |
<1.5:1 |
| Polarization |
Dual Slant ±45° |
| Horizontal Coverage |
30° |
| Total Number of Beams |
1 |
| Horizontal Beamwidth (3dB) |
17° |
| Number of Ports per Beam |
2 |
| Vertical Beamwidth (3dB) |
17° |
| First Sidelobe Level |
<-19dB |
| Front to Back Ratio |
>28dB |
| Isolation Port to Port – Polarization |
>28dB |
| Power Rating |
150W per port |
| Intermodulation |
<-153dBc |
| Impedance |
50 ohm |
| Connector Quantity and Type |
2 x 4.3-10 female |
Mechanical Data
| Dimensions (H x W x D) |
27.4 x 27.4 x 45.9 cm
10.8 x 10.8 x 18.1 inch |
| Antenna Weight |
3.5 kg | 7.7 lbs |
| Radome Material |
Polycarbonate |
| Mounting |
TBD |
Environmental Ratings
| Humidity |
95% RH @ +30°C |
| Temperature |
-40°C to +70°C |
| Wind load @ 160 km/hr |
N/Ibf
Frontal: 27.8/6.25
Lateral: 56.7/12.74 |
Pattern Results
|
Horizontal Pattern (3.5GHz) |

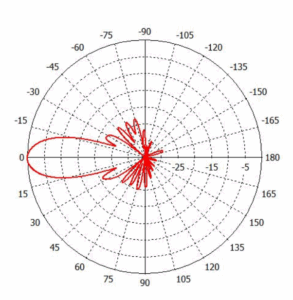

Vertical Pattern (3.5GHz) |
