Description
Lens Technology Enabled™ Multi-Beam Dual Band Base-Station Antenna utilizes a patented spherical lens design with 6 isolated C-Band (3700MHz − 4200MHz) cross-polarized beams, 6 isolated High Band (1695 MHz – 2690MHz) cross-polarized beams, each C & H Band beams have 4 ports to support 4X4 MIMO.
RET for C Band & High Band Beams 0°-15°.
Specifications
Technical Specifications Per Beam |
||
| Frequency | C-Band (3700-4200 MHz) | High-Band (1695-2690 MHz) |
| Gain | 21.5 dBi | 21 dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB) | 23° | 23° |
| Horizontal Beamwidth (3dB) | 13° | 13° |
| Vertical Beamwidth (10dB) | 23° | 23° |
| Vertical Beamwidth (3dB) | 13° | 13° |
| Beam Cross-over | 10dB typical | 10dB typical |
| Total Number of Beams | 6 | 6 |
| Number of Ports per Beam | 4 | 4 |
| Number of Ports Total | 24 | 24 |
| Tilt Per Cross-Pol | 0° – 15° | 0° – 15° |
| First Sidelobe Level | <-16dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB |
| Power Rating | 200W per port | 200W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female | 24 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
184 x 93.4 x 108.4 cm |
| 72.5 x 36.8 x 42.7 inch | |
|
Antenna Weight
|
95kg/209.4lbs [w/o Bracket] |
| 96.7kg/213.2lbs [w/Bracket] | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard Pipe Mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 1095 N / 246 lbf |
| Lateral: 1552 N / 349 lbf | |
| Rear: 1829 N / 411 lbf | |
Pattern Results |
|
| C-Band Horizontal Pattern (3.5GHz)
|
C-Band Vertical pattern (3.5GHz) at tilt 0° and 15°
|

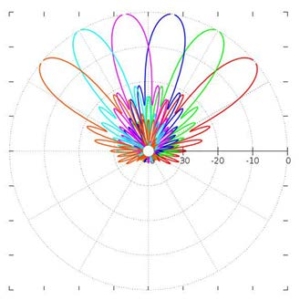

| High-Band Horizontal Pattern (1.92GHz)
|

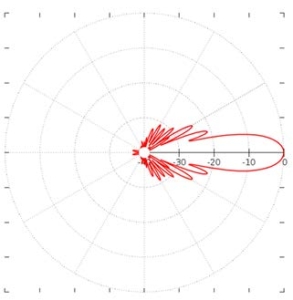

High-band Vertical Pattern (1.92GHz) at tilt 0° and 15°
|
