Description
Lens Technology Enabled™ Base-Station Antenna perfect for stadium applications utilizes a patented spherical lens design with 1 isolated LAA-frequency (5000-6000MHz) cross-polarized beam. Beam has 2 cross-polarized ports for supporting 2X2 MIMO and low side-lobe levels.
Specifications
Technical Specifications Per Beam
| Frequency | 5000-6000 MHz |
| Gain | 6dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 40° |
| Horizontal Beamwidth (10dB) Horizontal Beamwidth (3dB) |
40° 23° |
| Vertical Beamwidth (10dB) Vertical Beamwidth (3dB) |
40° 23° |
| Total Number of Beams | 1 |
| Number of Ports per Beam | 2 |
| First Sidelobe Level | <-20dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Power Rating | 20W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 2 x 4.3-10 female |
Mechanical Data
| Dimensions (H x W x D) | 12 x 12 x 28 cm 4.7 x 4.7 x 11 inch |
| Antenna Weight | 0.88 kg | 1.94 lbs |
| Radome Material | Polycarbonate |
| Mounting | TBD |
Environmental Ratings
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load | N/Ibf
Frontal: 3.0/0.67 |
Pattern Results |
|

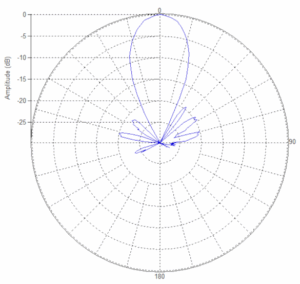

High-Band Horizontal Pattern (5.5GHz) |

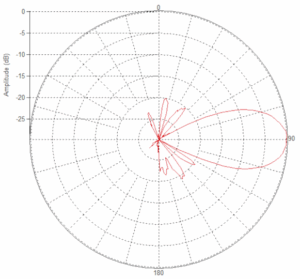

High-Band Vertical pattern (5.5GHz) |
