Description
Lens Technology EnabledTM Multi- Beam Dual Band Base- Station Antenna utilizes a patented spherical lens design with 4 isolated F Band (3300MHz – 4200MHz) cross-polarized beams, 4 isolated High Band (1695MHz – 2690MHz) cross-polarized beams. Each F Band beam has 4 ports per beam to support 4X4 MIMO. Each H Band beam has 2 ports per beam to support 2×2 MIMO. RET for F Band & High Band Beams 0°-20°.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 3300-4200 MHz | 1695-2690 MHz |
| Gain | 19dBi | 19.5dBi |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB) | 34° | 30° |
| Horizontal Beamwidth (3dB) | 19° | 17° |
| Vertical Beamwidth (10dB) | 34° | 30° |
| Vertical Beamwidth (3dB) | 19° | 17° |
| Beam Cross-over | 7 dB typical | 10 dB typical |
| Total Number of Beams | 4 | 4 |
| Number of Ports per Beam | 4 | 2 |
| Number of Ports Total | 16 | 8 |
| Tilt Per Cross-Pol; | 0° to 20° | 0° to 20° |
| First Sidelobe Level | <-16 dB | <-16 dB |
| Front to Back Ratio | >28 dB | >28 dB |
| Isolation Port to Port – Polarization | >28 dB | >28 dB |
| Isolation Port to Port – Beam | >28 dB | >28 dB |
| Power Rating | 150 W per port | 200 W per port |
| Intermodulation | <-153 dBc | <-153 dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female | 8 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 103.8 x 61.7 x 73.6 cm 40.9 x 24.3 x 29 inch |
| Antenna Weight | 33.5kg/73.8lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind load @ 150km/h
|
N/lbf
Frontal: 456/102.5 |
Pattern Results |
|
|

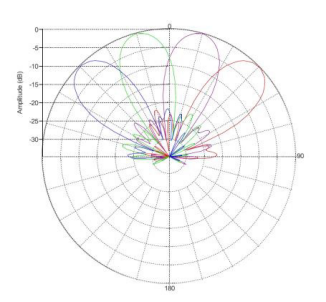

F-Band Horizontal Pattern (3.6GHz)
|

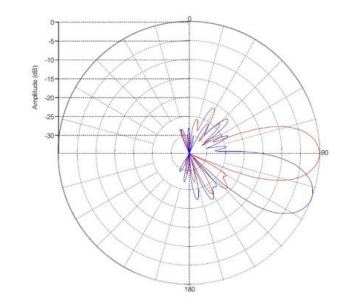

F-Band Vertical Pattern at 0° and 20° Tilt (3.6GHz)
|

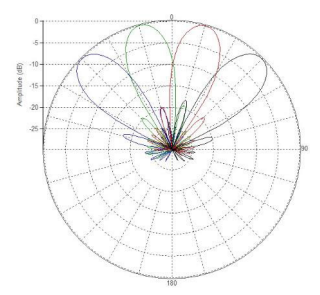

| High-Band Horizontal Pattern (1.92GHz)
|

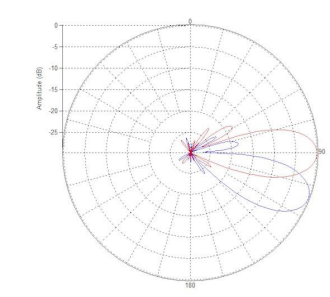

High-Band Vertical Pattern 0° tilt and 20° tilt (1.92GHz)
|
