Description
Multi-Beam Dual Band Spherical Lens Antenna: 8 independent high-frequency (1695-2690MHz) cross-polarized beams, with 0-15° tilt for each beam and 2×2 MIMO support per beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695-2690 MHz |
| Gain | 24.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 15° |
| Horizontal Beamwidth (3dB level) | 8.5° |
| Vertical Beamwidth (10dB level) | 15° |
| Vertical Beamwidth (3dB level) | 8.5° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 8 |
| Adjustable Tilt per Beam | 0° to 15° |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 250W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 120cm | 47inch Antenna dimensions: 128 x145.5 x 142.4 cm 50.4 x 57.3 x 56.1 inch |
| Antenna Weight | 80.66 kg | 177.8 lbs |
| Bracket Weight | 3.98 kg | 8.8 lbs |
| Gross Weight | 84.64 kg |186.6 lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/hr | N / lbf Frontal: 1108.5 / 249.2 |
Pattern Results |
|

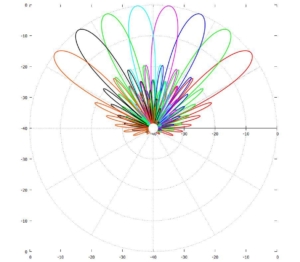

| High-Band Horizontal Pattern (1.80GHz)
|

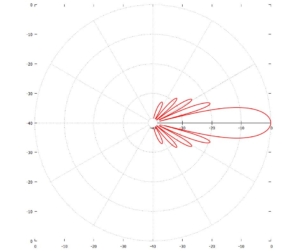

High-Band Vertical pattern (1.80GHz)
|
