Description
Multi-Beam Spherical Lens Antenna: 24 independent high-frequency (1695-2690MHz) cross-polarized beams with 2×2 MIMO support per beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695-2690 MHz |
| Gain | 27.5dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 126° |
| Horizontal Beamwidth (10dB) | 10° |
| Horizontal Beamwidth (3dB) | 6° |
| Vertical Beamwidth (10dB) | 10° |
| Vertical Beamwidth (3dB) | 6° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 24 |
| Tilt (Factory Set) | Upper Row: 4° Lower Row: -4° Or by customer request |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 100W per port |
| Total Applied Power | ≤ 2.5KWatts |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 48 X 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 180cm | 70inch Antenna dimensions: 187.1 x 207 x 206.5 cm 73.7 x 81.5 x 81.3 inch |
| Antenna Weight | 241 kg | 531.3 lbs |
| Bracket Weight | 6.92 kg | 15.3 lbs |
| Gross Weight | 247.92 kg | 546.5 lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load (Front) | N/lbf 1838/413 @150 km/hr |
| Wind load (Lateral) | N/lbf 2053/462 @150 km/hr |
Pattern Results (3.9GHz) |
|

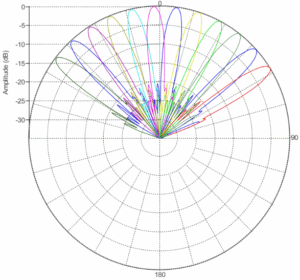

| Horizontal Pattern Row 1
|
Horizontal Pattern Row 2
|

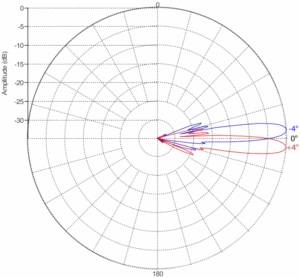

| Vertical Pattern
|
|
