Description

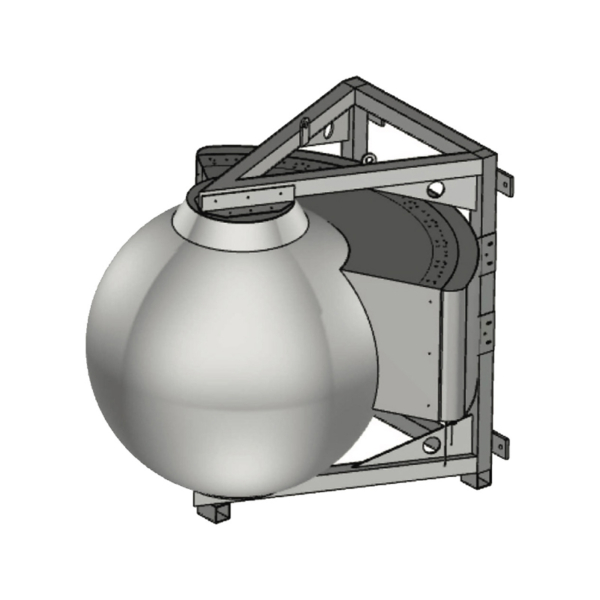

Multi-Beam Wide Band Spherical Lens Antenna: 2 rows of 12 independent high frequency (3300-4200MHz) cross-polarized beams.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3300-4200 MHz |
| Gain | 26dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB) | 10° |
| Horizontal Beamwidth (3dB) | 6° |
| Vertical Beamwidth (10dB) | 10° |
| Vertical Beamwidth (3dB) | 6° |
| Beam Cross-over | 8dB typical |
| Total Number of Beams | 24 |
| Tilt (Factory Set) | Top Row: +4.33° Bottom Row: -4.33° |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 50W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 48 X 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 90cm | 35inch Antenna dimensions: 105.4 x 108.4 x 109.9 cm 41.5 x 42.7 x 43.3 inch |
| Antenna Weight | 43.92 kg | 96.8 lbs |
| Bracket Weight | 3.98 kg | 8.8 lbs |
| Gross Weight | 47.9 kg | 105.6lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load | 55N @ 160km/h 13lbf @ 160km/h |
Pattern Results (3.9GHz) |
|
| Horizontal Pattern Row 1
|
Horizontal Pattern Row 2
|
| Vertical Pattern
|
|
