Description

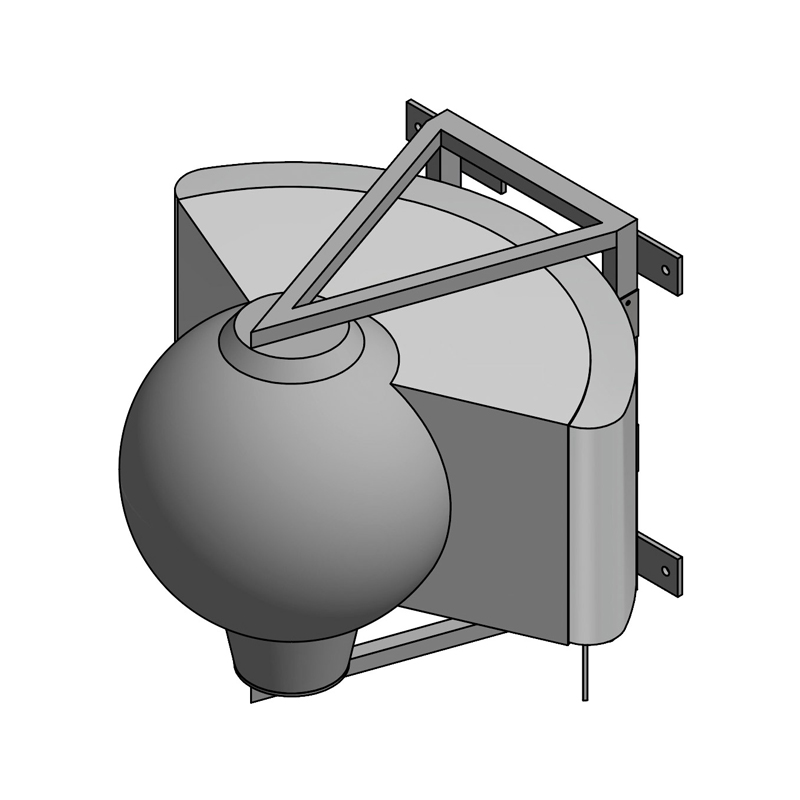

Multi-Beam Spherical Lens Antenna: 6 independent F-Band (3300-4200MHz) cross-polarized beams
with 2X2 MIMO support.
RET available from 0 to 15° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3300 – 4200 MHz |
| Gain | 22.3dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB) | 20° |
| Horizontal Beamwidth (3dB) | 12° |
| Vertical Beamwidth (10dB) | 20° |
| Vertical Beamwidth (3dB) | 12° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 6 |
| RET | 0° to 15° |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 12 X 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 45cm | 18inch Antenna dimensions: 74.4 x 72.8 x 67.8 cm 29.3 x 28.7 x 26.7 inch |
| Antenna Weight | 18.16 kg | 40 lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/hr | N/Ibf Frontal: 263/59 Lateral: 197/44 Rear: 254/57 |
Pattern Results |
|
|
Horizontal Pattern (3.7GHz)
|
Vertical pattern (3.7GHz) tilt 0 – 15°
|
