Description
Lens Technology Enabled™ Multi-Beam Dual Band Base-Station Antenna utilizes a patented spherical lens design with 3 isolated LAAfrequency (5000MHz-6000MHz) cross-polarized beams and 3 isolated F-Band (3300-4200MHz) cross-polarized beams. Each LAA beam has 2 ports to support 2×2 MIMO. Each F-Band beam has 4 ports to support 4×4 MIMO. There are two independent tilt settings per beam (0-30° for F-Band and 0-30° for LAA).
Specifications
Technical Specifications Per Beam |
||
| Frequency | LAA Band (5.0–6.0 GHz) | F Band (3.3–4.2 GHz) |
| Gain | 6dBi | 16.5dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 44° | 45° |
| Horizontal Beamwidth (3dB level) | 25° | 25° |
| Vertical Beamwidth (10dB level) | 44° | 45° |
| Vertical Beamwidth (3dB level) | 25° | 25° |
| Beam Cross-over | 7-9dB typical | 6-8dB typical |
| Total Number of Beams | 3 | 3 |
| Number of Ports per Beam | 2 | 4 |
| Number of Ports Total | 6 | 12 |
| Tilt Per Cross-Pol (Remote Electrical Tilt) | 0° to 30° | 0° to 30° |
| First Sidelobe Level | <-16dB | <-16dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB |
| Power Rating | 20W per port | 150W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 6 x 4.3-10 female | 12 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
121.1 x 42.6 x 44.4 cm |
| 47.7 x 16.8 x 17.5 inch | |
|
Antenna Weight
|
20.6kg/45.4lbs [w/o Bracket] |
| 22.1kg/48.7lbs [w/Bracket] | |
|
Bracket Weight
|
2.08 kg |
| 4.6 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
1 position pipe mount |
| Compatible Pipe Diameter | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 318 N / 71 lbf |
| Lateral: 402 N / 90 lbf | |
Pattern Results |
|

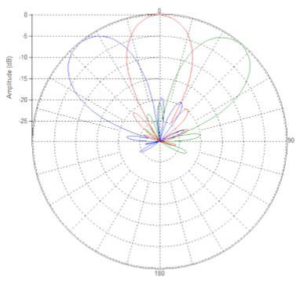

| F-Band Horizontal Pattern (3.5GHz)
|

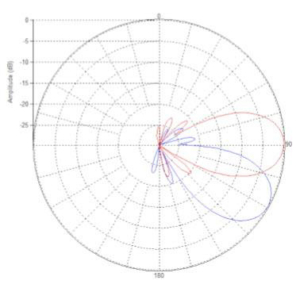

F-Band Vertical Pattern 0° tilt and 30° tilt (3.5GHz)
|

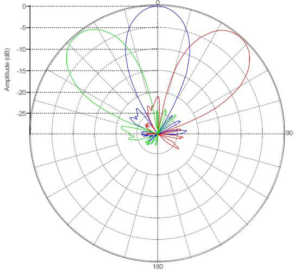

| LAA-Band Horizontal Pattern (5.5GHz)
|

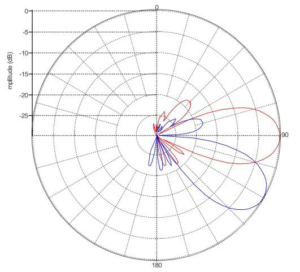

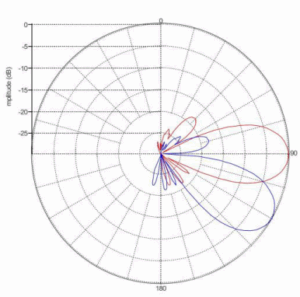

LAA-Band Vertical Pattern at 0° and 30° Tilt (5.5GHz)
|
