Description

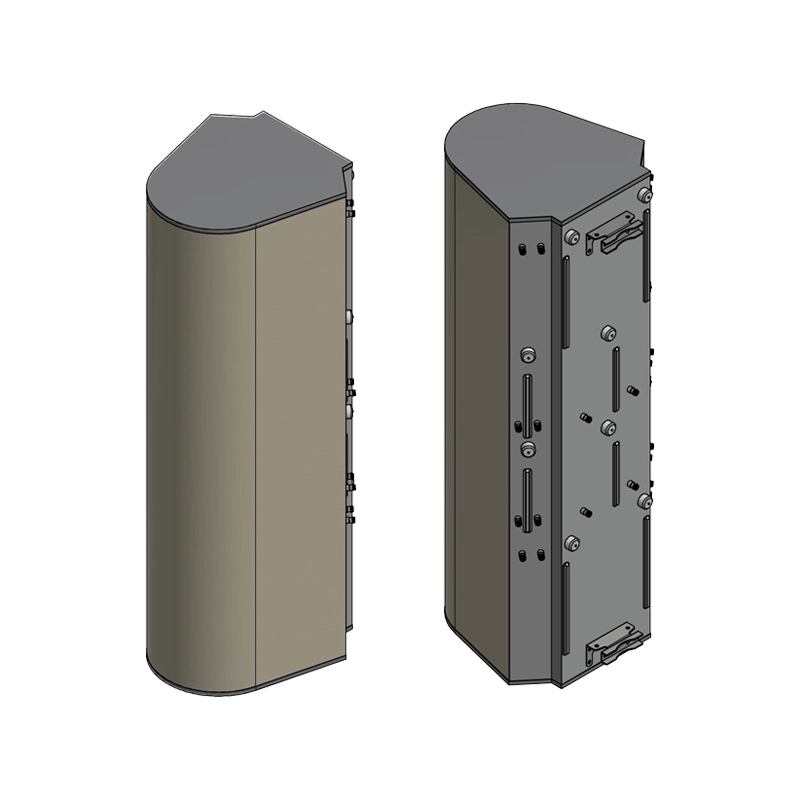

Lens Technology Enabled™ Multi-Beam Tri Band Base-Station Antenna utilizes a patented spherical lens design with 4 isolated F Band (3300MHz – 4200MHz) cross-polarized beams, 4 isolated High Band (1695MHz – 2690MHz) cross-polarized beams and 2 isolated Low Band (698MHz – 960MHz) beams, each beam has 4 ports to support 4X4 MIMO. RET for F Band & High Band Beams 0°-20°. RET for Low Band Beams 0°-40°.
Specifications
Technical Specifications Per Beam |
|||
| Frequency | 3300-4200 MHz | 1695-2690 MHz | 698-960 MHz |
| Gain | 19dBi | 19.5dBi | 13.5dBi |
| VSWR | <1.5:1 | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB) | 34° | 30° | 60° |
| Horizontal Beamwidth (3dB) | 19° | 17° | 34° |
| Vertical Beamwidth (10dB) | 34° | 30° | 60° |
| Vertical Beamwidth (3dB) | 19° | 17° | 34° |
| Beam Cross-over | 7dB typical | 10dB typical | 10dB typical |
| Total Number of Beams | 4 | 4 | 2 |
| Number of Ports per Beam | 4 | 4 | 4 |
| Number of Ports Total | 16 | 16 | 8 |
| RET Per Cross-Pol | 0°-20° | 0°-20° | 0°-40° |
| First Sidelobe Level | <-16dB | <-16dB | <-16dB |
| Front to Back Ratio | >28dB | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB | >28dB |
| Power Rating | 150W per port | 150W per port | 150W per port |
| Intermodulation | <-153dBc | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female | 16 x 4.3-10 female | 8 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
241.8 x 61.7 x 72 cm |
| 95.2 x 24.3 x 28.4 inch | |
| Antenna Weight | 71.2 kg/157 lbs |
| Bracket Weight | 2.08 kg | 4.5 lbs |
| Gross Weight | 73.3 kg/161.6 lbs |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @150km/hr | N/lbf
Frontal: 1050/236.1 |
Pattern Results |
|
F-Band Horizontal Pattern (3.6GHz) |
F-Band Vertical pattern (3.6GHz) at tilt 0° and 20°
 |
High-Band Horizontal Pattern (1.92GHz) |
High-band Vertical Pattern (1.92GHz) at tilt 0° and 20°
 |
Low-band Horizontal Pattern (0.8GHz) |
Low-band Vertical Pattern (0.8GHz) at tilt 0° and 40°
 |
