Description

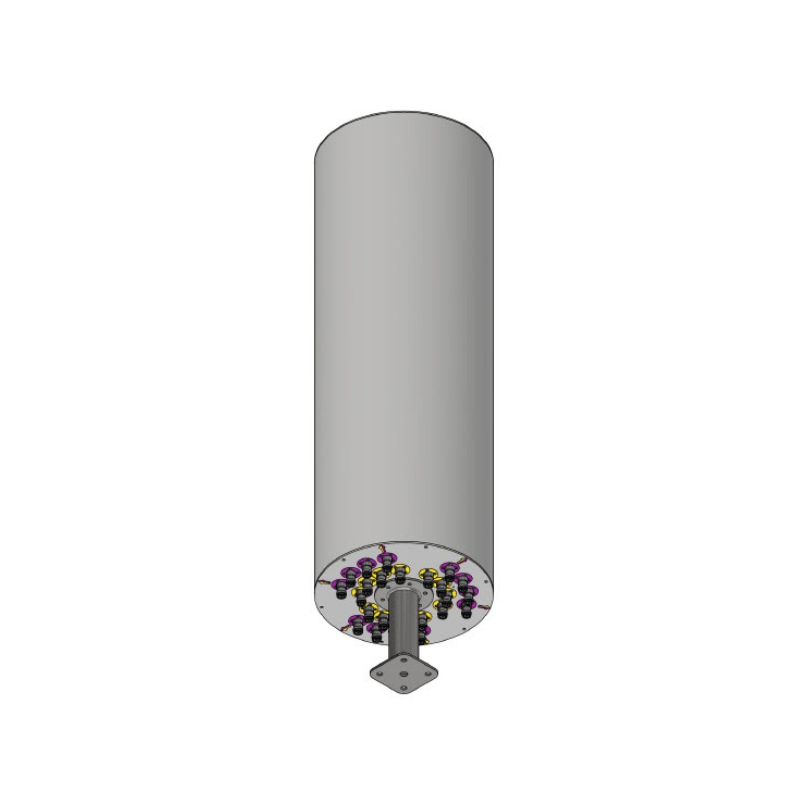

Lens Technology Enabled ™ dual-band Multi-Beam Antenna perfect for 6 to 12 sectors CRAN, Outdoor DAS and Small Cell deployment. This antenna is capable of 2X2 MIMO with a coverage footprint of 360°. One set of 6 beams with 2 ports per beam supports 1695-2690 MHz and another set of 6 beams with 2 ports per beam supports 3300-4200 MHz.
Two factory set tilts are available for 0° & 30°.
Model #
0° Factory Set Tilt Model # MS-LPP-6.6-F2-H2
30° Factory Set Tilt Model # MS- LPP-6.6-F2-H2-30°
Specifications
Technical Specifications Per Beam |
||
| Frequency | 3300 MHz – 4200 MHz | 1695 – 2690MHz |
| Gain | 14dBi | 12dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 360° | 360° |
| Horizontal Beamwidth (10dB level) | 64° | 65° |
| Horizontal Beamwidth (3dB) | 36° | 38° |
| Vertical Beamwidth (3dB) | 36° | 38° |
| Beam Cross-over | 8dB typical | 8dB typical |
| Total Number of Beams | 6 | 6 |
| Number of Ports per Beam | 2 | 2 |
| Number of Ports Total | 12 | 12 |
| Tilt Per Cross-Pol | 0° to 30° | 0° to 30° |
| First Sidelobe Level | <-15dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB |
| Power Rating | 100W per port | 100W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 12 x 4.3-10 female | 12 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Cylindrical Design
Diameter: |
| Antenna Weight | 18.02 kg | 39.7 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150km/h | N /Ibf
Frontal: 325.6/73.2 |
Pattern Results |
|

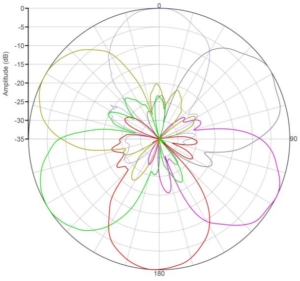

| Horizontal Beam Pattern (3.6GHz)
|

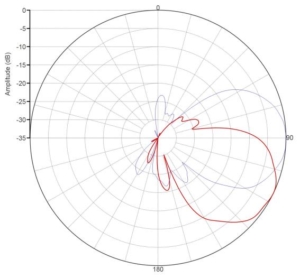

Vertical Pattern at 0° and 30° Tilt (3.6GHz)
|

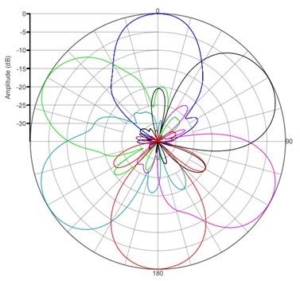

| Horizontal Pattern (1.80GHz)
|

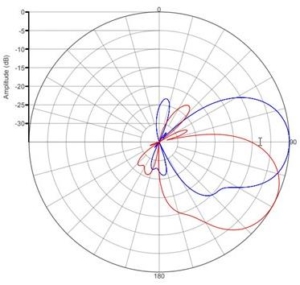

Vertical pattern 0° tilt and 30° tilt (1.80GHz)
|
