Multi-beam Base-Station Antenna (MBA)
• 4×4 MIMO 6-beam antenna, 24 ports, 4 ports per beam, 1695-269MHz
• Perfect forhigh-capacity applications: 18 sector cell sites, stadiums /
venues/special events
• Internal RET 0-15°, independent for each beam
• Patented lens technology allows high stable gain and stable
beamwidth for all beams, frequencies, and tilts
• Best-in-market horizontal coverage, port-to-port isolation, beam
pointing error, and wind load
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695-2690 MHz |
| Gain | 22.5±1dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 20° |
| Horizontal Beamwidth (3dB level) | 12° |
| Vertical Beamwidth (10dB level) | 22° |
| Vertical Beamwidth (3dB level) | 13° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 6 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 24 |
| RET | 0°- 15° |
| First Sidelobe Level | -16dB |
| Front to Back Ratiob@ 180° | >30dB |
| Isolation Port to Port, intra Beam | >28dB |
| Isolation Port to Port, inter Beam | >28dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Antenna dimensions: 127 x 94 x 108.4 cm 49.9 x 36.9 x 42.7 inch |
| Antenna Weight | 76.9 kg/169.5 lbs |
| Bracket Weight | 2.58 kg | 5.7 lbs |
| Gross Weight | 79.5 kg/175 lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150km/h | N/Ibf
Frontal: 909/204 Lateral: 1054/237 |
Pattern Results |
|

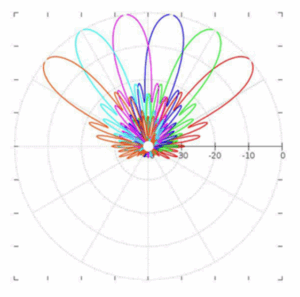

| High-Band Horizontal Pattern (1.80GHz)
|
High-Band Vertical pattern 0° tilt and 15° tilt (1.80GHz)
|
