Description
Lens Technology Enabled™ Base-Station Antenna perfect for stadium applications utilizes a patented spherical lens design with 1 isolated high-frequency (1710-2690MHz) cross-polarized beam. Beam has 2 cross-polarized ports for supporting 2X2 MIMO and low side-lobes.
Specifications
Technical Specifications Per Beam
| Frequency |
1710 – 2690 MHz |
| Gain |
19.5dBi |
| VSWR |
<1.5:1 |
| Polarization |
Dual Slant ±45° |
| Horizontal Coverage |
30° |
| Total Number of Beams |
1 |
| Horizontal Beamwidth (3dB) |
17° |
| Number of Ports per Beam |
2 |
| Vertical Beamwidth (3dB) |
17° |
| First Sidelobe Level |
<-20dB |
| Front to Back Ratio |
>28dB |
| Isolation Port to Port – Polarization |
>28dB |
| Power Rating |
250W per port |
| Intermodulation |
<-153dBc |
| Impedance |
50 ohm |
| Connector Quantity and Type |
2 x 4.3-10 female |
Mechanical Data
| Dimensions (H x W x D) |
44.9 x 44.9 x 62.9 cm
17.7 x 17.7 x 24.8 inch |
| Antenna Weight |
9.94 kg | 21.9 lbs |
| Radome Material |
Polycarbonate |
| Mounting |
TBD |
Environmental Ratings
| Humidity |
95% RH @ +30°C |
| Temperature |
-40°C to +70°C |
| Wind load @ 160 km/hr |
N/Ibf
Frontal : 94.4/21.2
Lateral: 196.7/44.2 |
Pattern Results
|

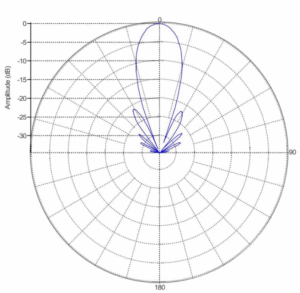

High-Band Horizontal Pattern (1.80GHz)
 |

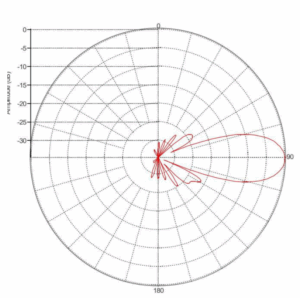

High-Band Vertical pattern (1.80GHz)  |
