Description
Multi-Beam Spherical Lens Antenna: 8 independent high frequency (1695-2690MHz) cross-polarized beams. Beams are arranged in two rows of 4 with the second-row offset to minimize overlap/null. The top and bottom rows have an independent 15° tilt.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 20.5dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° 4 sectors 30° each |
| Horizontal Beamwidth (10dB) | 30° |
| Horizontal Beamwidth (3dB) | 17° |
| Vertical Beamwidth (10dB level) | 30° |
| Vertical Beamwidth (3dB) | 17° |
| Beam Cross-over | 10dB |
| Total Number of Beams | 8 |
| Tilt (Factory Set) | -13° Top Row 13° Bottom Row |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 60cm | 24inch Antenna dimensions: 81.5 x 92.4 x 80cm 32 x 36.4 x 31.5 inch |
| Antenna Weight | 30.62 kg | 67.5 lbs |
| Bracket Weight | 3.98 kg | 8.8 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150km/hr | N/Ibf Frontal: 729/164 Lateral: 416/93.5 Rear: 476/107 |
Pattern Results (3.6GHz) |
|||
| Horizontal Pattern top row
|
Horizontal Pattern Bottom Row
|

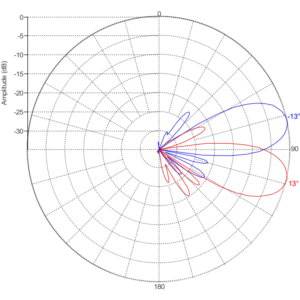

Vertical Pattern
|
|
