Description

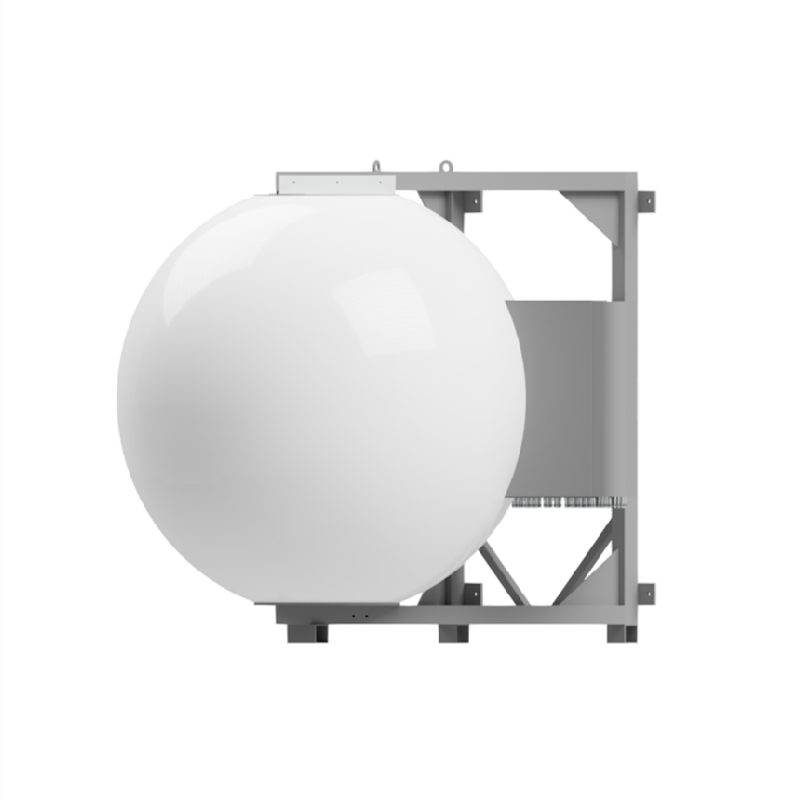

Multi-Beam Wide Band Spherical Lens Antenna: 1 row of 18 independent F-Band (3.3-4.2GHz) cross-polarized beams, with independent 0° – 15° tilt per beam, with independent 0° – 15° tilt per beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3300-4200 MHz |
| Gain | 26dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB) | 7° |
| Horizontal Beamwidth (3dB) | 4° |
| Vertical Beamwidth (10dB) | 10° |
| Vertical Beamwidth (3dB) | 6° |
| Beam Cross-over | 10dB typical |
| Number of Ports Beams | 18 |
| Tilt | 0 – 15° |
| First Sidelobe Level | <-16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 50W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 36 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Spherical Lens diameter: 120cm | 47inchAntenna dimensions: 95 x 145 x 142 cm 37 x 57 x 56 inch |
| Antenna Weight | 70 kg | 154 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150m/hr | N/Ibf
Frontal: 763/172 |
Pattern Results |
|
|
Horizontal Pattern (3.8GHz)
|
Vertical Pattern (3.8GHz) 0° & 15° Tilt
|
