Description
Lens Technology Enabled™ Multi-Beam Cylindrical Base-Station Lens Antenna;
Four isolated high frequency (1695-2690 MHz) cross-polarized beams. Each beam has four ports to support 4×4 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2-15° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 20.0 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB level) | 18° |
| Horizontal Beamwidth (10dB level) | 30° |
| Vertical Beamwidth (3dB) | 12.5° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 4 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 16 |
| RET | 2° to 15° |
| First Upper Sidelobe level | < -15dB |
| Azimuth Sidelobe level | < -15dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 25dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
1254 x 547 x 571 mm |
| 49.4 x 21.5 x 22.5 inch | |
|
Antenna Weight
|
38.9 kg |
| 85.7 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
2 position pipe mount |
| Compatible Pipe Diameter : | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 525/118 N/Ibf |
| Lateral: 616/138 N/Ibf | |
| Rear: 656/147 N/Ibf | |
Pattern Results |
|

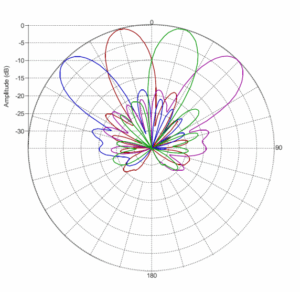

| High-Band Horizontal Pattern (1.80GHz)
|

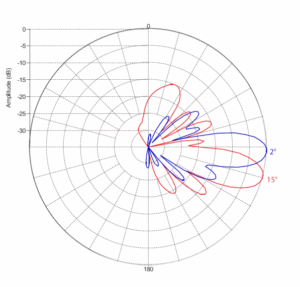

Vertical pattern at 2° tilt and 15° tilt (1.80GHz)  |
