Description
Lens Technology Enabled™ Multi-Beam Cylindrical Base-Station Lens Antenna;
Four isolated high frequency (1695-2690 MHz) cross-polarized beams. Each beam has four ports to support 2×2 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2-15° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 20.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB) | 30° |
| Horizontal Beamwidth (3dB) | 18° |
| Total Number of Beams | 4 |
| Vertical Beamwidth (3dB) | 12.5° |
| Beam Cross-over | 10dB typical |
| Number of Ports Beams | 2 |
| RET | 2° to 15° |
| First Sidelobe Level | < -15dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 25dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 8 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Antenna dimensions: 680 x 547 x 571 mm 26.8 x 21.5 x 22.5 inch |
| Antenna Weight | 25.4kg | 56lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 284/63.8 Lateral: 340/76.4 Rear: 355/79.8 |
Pattern Results |
||
|

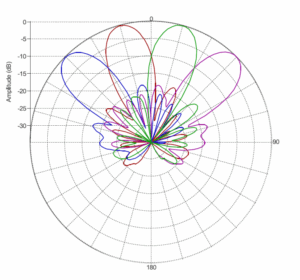

High-Band Horizontal Pattern (1.80GHz) |

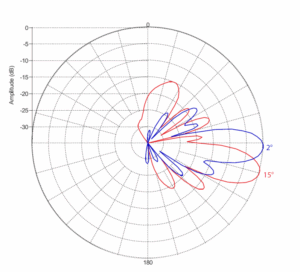

Vertical pattern at 2° tilt and 15° tilt (1.80GHz)
|
|
