Description
Multi-Beam Cylindrical Base-Station Lens Antenna;
Two isolated low frequency (698-960 MHz) cross-polarized beams. Each beam has two ports to support 2X2 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2-16° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 698 – 960 MHz |
| Gain | 16.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB level) | 35° |
| Horizontal Beamwidth (10dB level) | 60° |
| Vertical Beamwidth (3dB) | 15° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 2 |
| Number of Ports per Beam | 2 |
| Number of Ports Total | 4 |
| RET | 2° to 16° |
| First Sidelobe Level | 15dB |
| Azimuth Sidelobe level | 16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 26dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 4 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 124.4 x 64.7 x 75.6 cm
49 x 25.5 x 29.8 inch |
| Antenna Weight | 37.9kg
83.61lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount
Compatible pipe diameter: |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf
Frontal: 610.7/137 Lateral: 715/160.4 Rear: 811/182 |
Pattern Results |
|

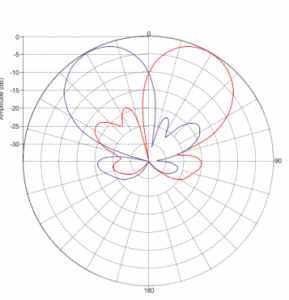

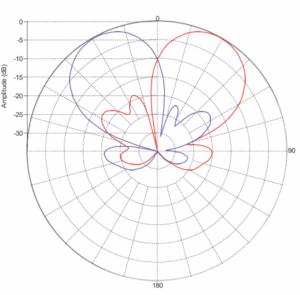

| Horizontal Pattern (800MHz)
|

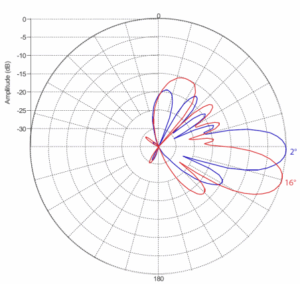

Vertical pattern at 2° tilt and 16° tilt (800MHz)
|
