Description
Multi-Beam Cylindrical Base-Station Lens Antenna;
Three isolated high-frequency (1695-2690 MHz) cross-polarized beams. Each beam has four ports to support 4×4 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2° – 15° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 18.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB Level) | 23° |
| Horizontal Beamwidth (10dB Level) | 40° |
| Vertical Beamwidth (3dB) | 12.5° |
| Total Number of Beams | 3 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 12 |
| RET | 2° to 15° |
| First Upper Sidelobe Level | < -15dB |
| Azimuth Sidelobe level | < -15dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 25dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 12 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 127 x 48.2 x 55.8 cm 50 x 19 x 22 inch |
| Antenna Weight | 30.74kg | 67.7lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 471/106 Lateral: 429/96 Rear:471/106 |
Pattern Results |
|

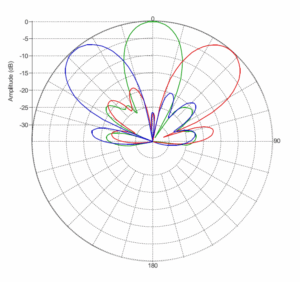

| High-Band Horizontal Pattern (1.80GHz)
|

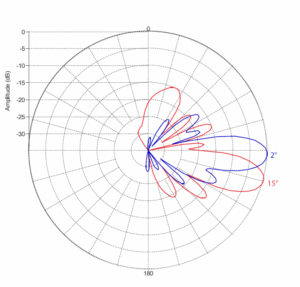

Vertical pattern at 2° tilt and 15° tilt (1.80GHz)
|
