Description
Lens Technology Enabled™ Base-Station Antenna perfect for stadium applications, utilizes a patented spherical lens design with 1 C – Band Frequency (3700-4200MHz) cross-polarized beam. Beam has 2 cross-polarized ports for supporting 2X2 MIMO and low side-lobe levels.
Specifications
Technical Specifications Per Beam
| Frequency | 3700 – 4200 MHz |
| Gain | 17dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 40° |
| Horizontal Beamwidth (3dB) | 23° |
| Vertical Beamwidth (3dB) | 23° |
| Total Number of Beams | 1 |
| Number of Ports per Beam | 2 |
| First Sidelobe Level | <-18dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 2 x 4.3-10 female |
Mechanical Data
| Dimensions (H x W x D) | 16 x 16 x 35 cm 6.2 x 6.2 x 13.7 inch |
| Antenna Weight | 2.86 kg | 6.3 lbs |
| Radome Material | Polycarbonate |
| Mounting | TBD |
Environmental Ratings
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 160 km/hr | N/Ibf
Frontal: 11.2/2.5 |
Pattern Results |
|

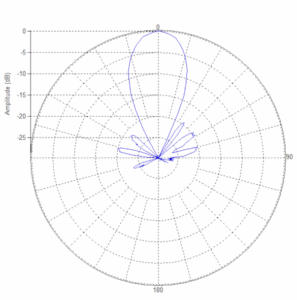

| Horizontal Pattern (3.9GHz)
|

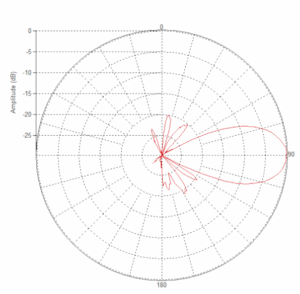

Vertical Pattern (3.9GHz)
|
