The wireless landscape is undergoing a monumental shift. As 5G matures and the industry begins the rigorous process of defining 6G, the physical layer of our networks—the antenna—is facing an existential challenge. We are no longer just sending text and voice; we are building a world of immersive augmented reality, autonomous vehicles, and the “Internet of Everything.” To support this, the industry must overcome a series of complex antenna hurdles that traditional hardware simply wasn’t designed to handle.
The Growing Pains of 5G and the 6G Horizon
Today’s 5G macro networks as well as large venue networks are built on the promise of high-speed, high-capacity data. To deliver this, operators and network engineers have turned to massive MIMO and beamforming, which use large arrays of antennas to focus signals toward specific users. However, as 5G densification continues, several “bottlenecks” have emerged:
- Spectral Inefficiency and Interference: Traditional panel antennas typically provide a few wide beams per sector. In dense urban environments, these beams often overlap, causing significant signal interference and “noise” that eats into the available bandwidth.
- The Millimeter-Wave (mmWave) Struggle: High-frequency bands offer massive speeds but suffer from extreme propagation loss. They are easily blocked by walls, trees, or even rain. To compensate, current antennas require massive power and complex electronics, leading to high energy consumption and heat.
- Infrastructure “Clutter”: To add capacity with traditional hardware, operators often have to add more antennas. This leads to heavy, unsightly towers that face mounting zoning and permitting challenges in historic or aesthetic-conscious areas.
Looking toward 6G, the stakes are even higher. 6G aims for sub-terahertz (THz) frequencies, which will require even more precise beam control to overcome path blockage and misalignment. Furthermore, 6G is expected to be 10 times more energy-efficient than 5G, a goal that is nearly impossible to reach if we continue using power-hungry, active phased-array systems as our primary solution. The industry needs a way to deliver more “beams” without the exponential increase in power, weight, and cost.
MatSing MBC: Redefining the Future with Cylindrical Lens Technology

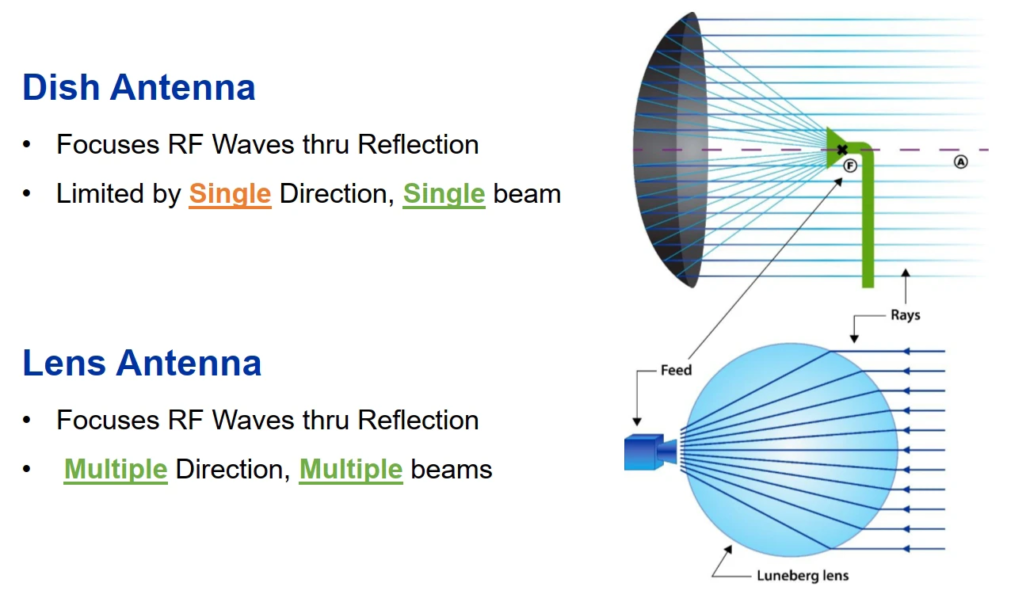

This is where MatSing Multi-beam Cylindrical (MBC) lens antennas provide a paradigm shift. Unlike traditional antennas that rely on complex electronic phase shifters to steer beams, MatSing uses patented metamaterial lens technology to naturally focus radio frequency (RF) energy. Phased-array antennas rely on complex electronic phase shifting to steer beams, which requires numerous active components and precise calibration.

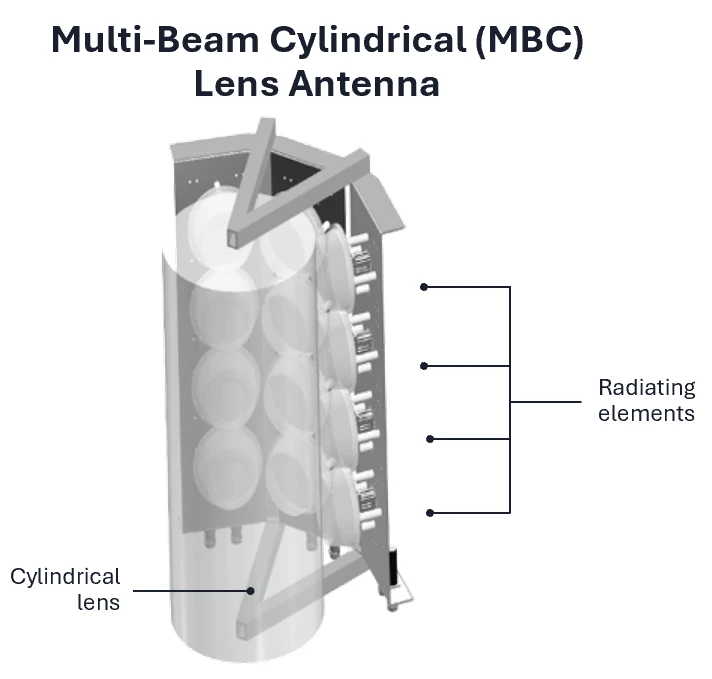

In contrast, cylindrical lens antennas use passive optics that focus RF signals from the feed source to create very tight, high-focused, high gain beams. The lens’ symmetry enables multiple radiating elements to be positioned across its surface, creating multiple simultaneous beams from one antenna.
The fundamental operating principles between the two technologies translate to important functional differences—and opportunities—for MNOs and carriers going forward.
- Massive Capacity, Minimum Footprint: A single MatSing MBC antenna can replace several traditional panel antennas. For example, their MBC-4-C4-6 model provides four isolated C-Band beams, each supporting 4×4 MIMO. This allows operators to quadruple their capacity at a site without adding a single inch of additional tower space.
- Extreme Precision and Low Interference: Because the lens refracts the signal into a narrow, sharp beam, there is significantly less “bleed” into adjacent sectors. This precision maximizes spectral reuse, allowing more users to share the same frequency without a drop in quality.
- Frequency Agnostic and Passive Efficiency: Lens antennas are inherently broadband. They can support multiple frequency bands within a single unit, making them the perfect bridge between current 4G/5G needs and future 6G THz applications. Furthermore, because the beam-forming is done by the lens (passive) rather than through endless electronics (active), they are lighter and more cost-effective to deploy and maintain.
The Shift is On
Led by the MatSing MBC portfolio, MNOs and carriers are rapidly discovering the potential of high-performance lens antennas. For example, a for a major Mobile Network Operator (MNO) in Asia, recent deployed the MatSing MS-MBC-4-H4-12 antenna and reported significant improvements across multiple performance metrics.
The multi-beam cylindrical lens technology facilitated a 102% increase in average download throughput and a 13% rise in hourly average download data volume, while upload performance saw a 30% hourly average increase. Network efficiency also improved markedly, with downlink and uplink physical resource block (PRB) utilization enhancing by 37% and 31%, respectively. These technical improvements directly translated into a better user experience and increased capacity, allowing the operator to support 26% more average users on the network.
Similarly, multiple major MNOs in the Middle East achieved transformative results during trials of the MatSing MS-MBC-4.2-H4-12-L4-20 antenna. The deployment led to a massive surge in data consumption, with average traffic increasing by 52% for 5G, 58% for 4G LTE, and 53% for VoLTE services. Beyond just handling more volume, the network became more responsive and efficient, showing a 6% improvement in average download latency and a 52% increase in average throughput per user. Efficiency gains were equally impressive, with a 20% improvement in downlink PRB utilization and a 39% boost in uplink PRB utilization, ultimately enabling these operators to support an average of 71% more users.
