Description
Lens Technology Enabled™ Multi-Beam Cylindrical Base-Station Lens Antenna;
Six isolated high frequency (1695-2690 MHz) cross-polarized beams. Each beam has four ports to support 4×4 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2-12° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 23.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB level) | 12° |
| Horizontal Beamwidth (10dB level) | 20° |
| Vertical Beamwidth (3dB) | 7.5° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 6 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 24 |
| RET (AISG & SBT ) | 2° to 12° |
| First Upper Sidelobe level | 15dB |
| Azimuth Sidelobe level | -18dB |
| Front to Back Ratio | 28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
214 x 108.2 x 100.3 cm |
| 84.3 x 42.6 x 39.5inch | |
| Antenna Weight | 120 kg / 264.5 lbs |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard position pipe mount |
| Compatible pipe diameter: | |
| 10.1 – 15.2 cm | |
| 4 – 6 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 1671 N/376 Ibf |
| Lateral: 2215 N/498 Ibf | |
| Rear: 2202 N/450 Ibf | |
Pattern Results |
|
| High-Band Horizontal Pattern (1.80GHz)
|

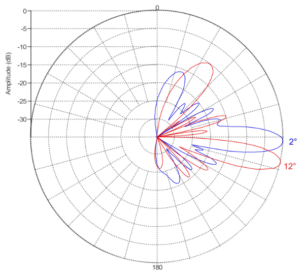

Vertical pattern at 2° and 12° tilt (1.80GHz)  |
