Description
Multi-Beam Cylindrical Base-Station Lens Antenna;
Three isolated Low frequency (698 – 960 MHz) cross-polarized beams. Each beam has four ports to support 4×4 MIMO.
RET (Smart Bias Tee & AISG 2.0) with 2°-15° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 698 – 960 MHz |
| Gain | 18 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB Level) | 40° |
| Horizontal Beamwidth (3dB Level) | 24° |
| Vertical Beamwidth (3dB) | 16° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 3 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 12 |
| RET | 2° to 20° |
| First Sidelobe Level | < -15dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >26dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 12 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 243 x 96.8 x 95.3 cm 95.7 x 38.1 x 37.5 inch |
| Antenna Weight | 127.5kg | 281lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard position pipe mount Compatible pipe diameter: 10.1 – 15.2 cm 4 – 6 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 1647 / 370.3 Lateral: 2334 / 524.7 Rear: 1931 / 434.1 |
Pattern Results |
|

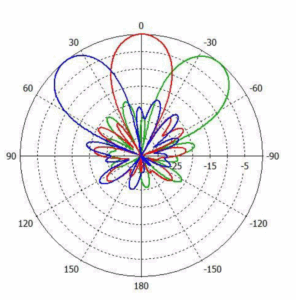

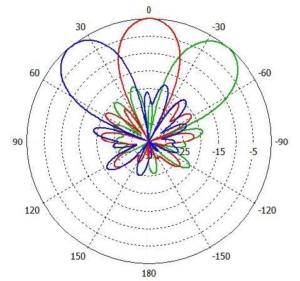

| Horizontal Pattern (800MHz)
|

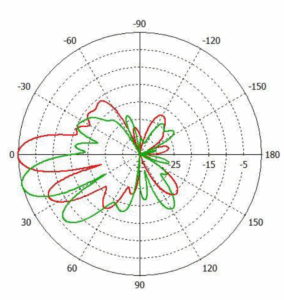

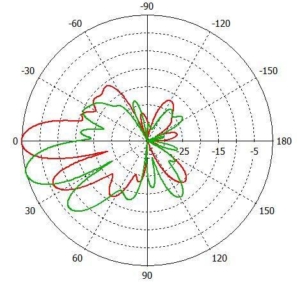

Vertical Pattern at 2° tilt and 15° tilt (800MHz)
|
