Description
Multi-Beam Dual Band Cylindrical Lens Antenna:
4 independent high-frequency (1695-2690 MHz) dual-polarized beams and 2 independent low-frequency (617 -896 MHz) dual-polarized beams with 4X4 MIMO support. Each beam has independent RET, for high frequency 2°- 15° and for low frequency 2°-20°. Exceptional beam stability and isolation.
Specifications
Technical Specifications Per Beam |
|||
| Frequency, MHz | 617-896 | 1695-2360 | 2490-2690 |
| Gain (all tilts/ports), dBi | 14.5±1.5 | 20.5±1.3 | 21.5±0.5 |
| VSWR | 1.5:1 | 1.5:1 | 1.5:1 |
| Polarization | ±45° | ±45° | ±45° |
| Beam Centers, deg | ±30 | ±15, ±45° | ±15, ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB level), deg | 60±10 | 30±3 | 28±1 |
| Horizontal Beamwidth (3dB level), deg | 35±6 | 17±1.5 | 16±0.7 |
| Vertical Beamwidth (3dB level) | 25 | 12 | 10 |
| Beam Cross-over, dB | 10 | 10 | 10 |
| Total Number of Beams | 2 | 4 | 4 |
| Number of Ports per Beam | 4 | 4 | 4 |
| Horizontal Beam Squint, all Tilts/ports | <±2° | <±1.5° | <±1° |
| Beam Tilt, deg | 2 to 20 | 2 to 15 | 2 to 15 |
| First Upper Sidelobes level, dB | -15 | -15 | -16 |
| Front to Back Ratio at 180, dB | 28 | 33 | 35 |
| Isolation same beam, dB | 26 | 26 | 26 |
| Isolation Beam to beam, dB | 26 | 26 | 26 |
| Power Rating, per port max, W | 250 | 200 | 200 |
| PIM, 3rd Order, 2x20W, dBc | <-153 | <-153 | <-153 |
| Impedance, Ohm | 50 | ||
| Connector Quantity and Type | 24 x 4.3-10 female | ||
| Total power, max, W | 2800 | ||
Mechanical Data |
|
|
Dimensions (H x W x D)
|
174.7 x 77.2 x 78.4 cm |
| 68.8 x 30.4 x 30.9 inch | |
|
Antenna Weight
|
67kg |
| 147.7 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Adjustable Clamps |
| Compatible Pipe Diameter : | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 in | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 966 N / 217.2 lbf |
| Lateral: 1192 N / 268 lbf | |
| Rear: 1117 N / 251.1 lbf | |
Pattern Results |
|

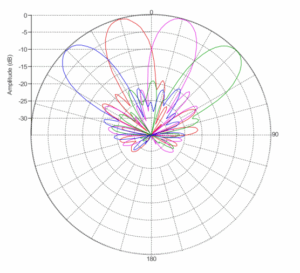

| High-band Horizontal Pattern (1.92GHz)
|

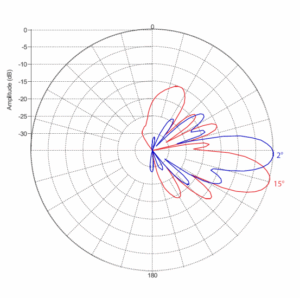

High-band Vertical Pattern (1.92GHz) at tilt 2° and 15°
 |

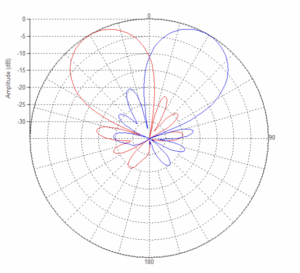

| Low-band Horizontal Pattern (0.8GHz)
|

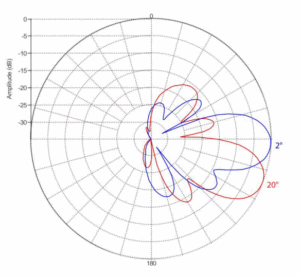

Low-band Vertical Pattern (0.8GHz) at tilt 2° and 20°
 |
