4 Beams : C Band (3700 – 4200 MHz)
4 Beams : H Band (1695 – 2690 MHz)
2 Beams : L Band (698 – 960 MHz)
Production: Ready
Request quote

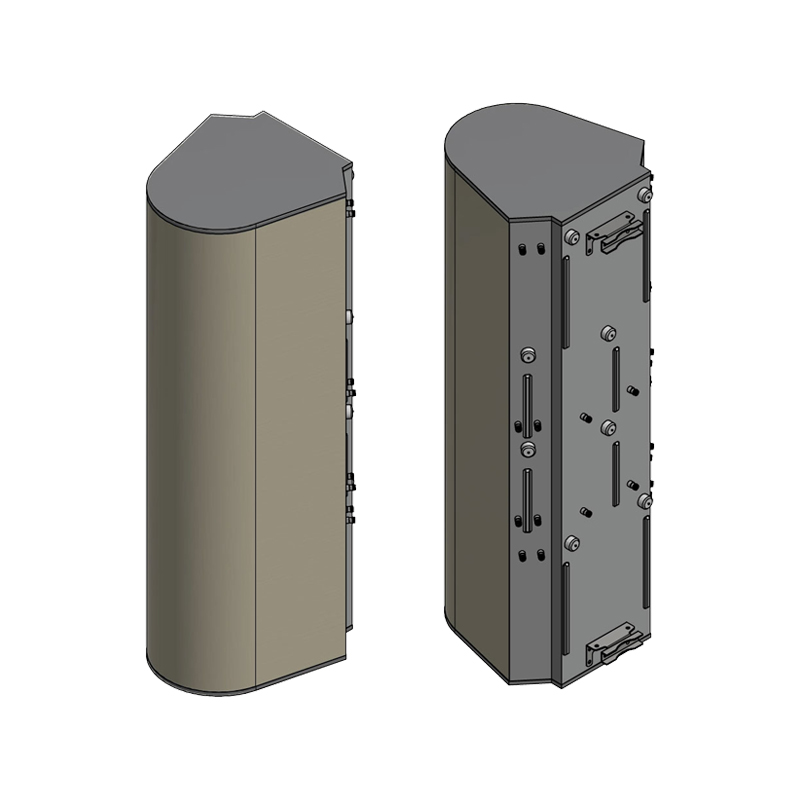

Lens Technology Enabled™ Multi-Beam Tri-Band Base-Station Antenna utilizes a patented spherical lens design with
• 4 isolated F Band (3700MHz-4200MHz) cross-polarized beams,
• 4 isolated High Band (1695MHz-2690MHz) cross-polarized beams
• 2 isolated Low Band (698MHz-960MHz) beams
| Product Category | Antenna |
|---|---|
| Band Count | Tri Band |
| Band Type | C & H & L Band |
| Product Family | MBA |
| Production Status | Ready |
| RET Available | Yes |
| Manual Tilt Adjust | Yes |
| H x W x D (cm) | 140.9 X 61.7 X 72.1 |
| H x W x D (inch) | 55.5 X 24.3 X 28.4 |
| Weight (kg) | 47.7 |
| Weight (lbs) | 105.1 |
| Application | COWS & COLTS, Indoor Stadium & Venues, Outdoor Venues & Events |
| RET Controller | M-RET |
| ILF | No |
| SBT | No |
| MIMO Capability C-Band | 2X2 |
| MIMO Capability H-Band | 2X2 |
| MIMO Capability L-Band | 2X2 |
| Product Milestone | ML7 |
Pattern Files (Planet)
Pattern Files (Asset)
Pattern Files (Paf-x)
Pattern Files (iBWave)
Pattern Files (iBWave Combined Version)
MS-MBA Series Antenna Unpacking Instructions
MS-MBA Series Antenna Unpacking Label
Crate Dimensions
| L x W x H (cm) | 160 x 90 x 98 |
| L x W x H (inches) | 63 x 36 x 39 |
