Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna utilizes a patented spherical lens design with 3 rows of 4 independent F-Band (3300 MHz – 4200 MHz) cross-polarized beams and 3 rows of 4 independent High Band (1695MHz – 2690MHz) cross-polarized beam. Each beam has 2 ports to support 2X2 MIMO.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 3300-4200 MHz | 1695-2690 MHz |
| Gain | 17dBi | 19dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 34° | 30° |
| Horizontal Beamwidth (3dB level) | 19° | 17° |
| Vertical Beamwidth (10dB level) | 34° | 30° |
| Vertical Beamwidth (3dB level) | 19° | 17° |
| Beam Cross-over | 10dB typical | 10dB typical |
| Total Number of Beams | 12 | 12 |
| Number of Ports per Beam | 2 | 2 |
| Number of Ports Total | 24 | 24 |
| First Sidelobe Level | <-16dB | <-16dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB |
| Power Rating | 50W per port | 50W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female | 24 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
877 x 619 x 642 mm |
| 34.5 x 24.3 x 25.3 inch | |
|
Antenna Weight
|
30 kg |
| 66.1 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount |
| Compatible Pipe Diameter : | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 in | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @ 150 km/h | N/Ibf
Frontal: 381/85.7 |
Pattern Results |
||
|
F-Band Horizontal Pattern (3.6GHz) Row 1 & Row 3
 |

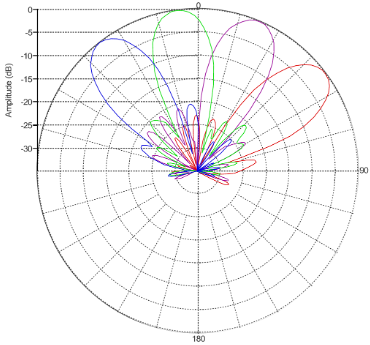

F-Band Horizontal Pattern (3.6GHz) Row 2
|
F-Band Vertical Pattern (3.6GHz)
|
|
High-Band Horizontal Pattern (1.92GHz) Row 1 & Row 3
|
High-Band Horizontal Pattern (1.92GHz) Row 2
|
High-Band Vertical Pattern (1.92GHz)
|
