Description

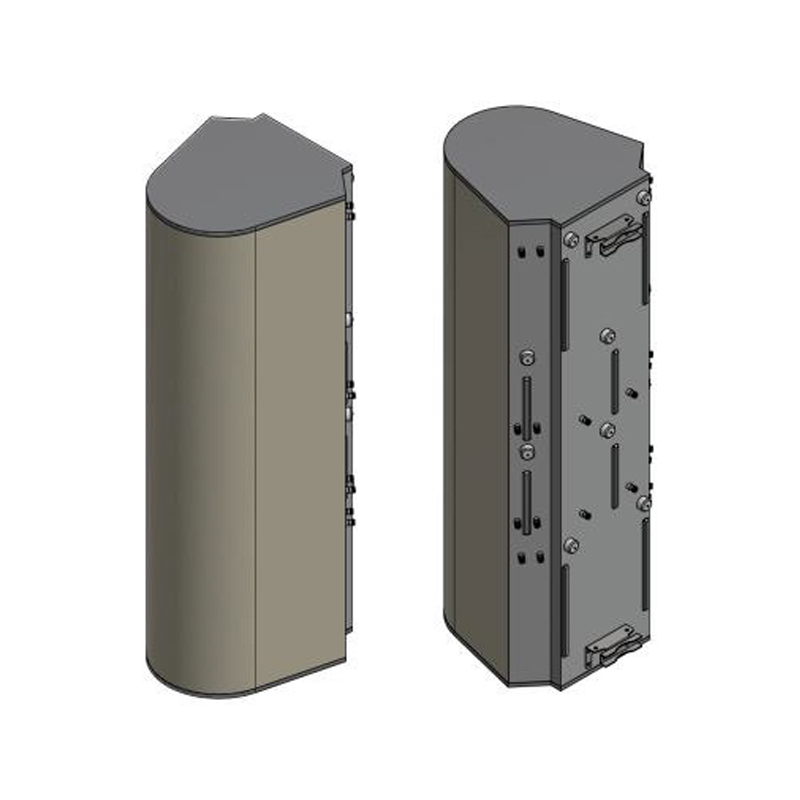

Lens Technology Enabled™ Multi-Beam Tri-Band Base-Station Antenna utilizes a patented spherical lens design with 6 isolated F- Band (3300MHz – 4200MHz) cross-polarized beams, 6 isolated High Band (1695MHz – 2690MHz) cross-polarized beams and 3 isolated Low Band (617MHz – 896MHz) beams, each F & H Band beam have 4 ports to support 4X4 MIMO. Each T-Band beam has 2 ports to support 2×2 MIMO.
RET for F Band & High Band Beams 0°-15°. RET for Low Band Beams 0°-20°.
Specifications
Technical Specifications Per Beam |
|||
| Frequency | 3.3-4.2 GHz | 1695-2690 MHz |
617-896 MHz |
| Gain | 21.5dBi | 22dBi | 16dBi |
| VSWR | <1.5:1 | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB) | 21° | 20° | 41° |
| Horizontal Beamwidth (3dB) | 12° | 11° | 24° |
| Vertical Beamwidth (10dB) | 22° | 22° | 41° |
| Vertical Beamwidth (3dB) | 13° | 13° | 24° |
| Beam Cross-over | 10dB typical | 10dB typical | 10dB typical |
| Total Number of Beams | 6 | 6 | 3 |
| Number of Ports per Beam | 4 | 4 | 2 |
| Number of Ports Total | 24 | 24 | 6 |
| RET Per Cross-Pol | 0°-15° | 0°-15° | 0°-20° |
| First Sidelobe Level | <-16dB | <-16dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >28dB | >26dB |
| Power Rating | 200W per port | 200W per port | 250W per port |
| Intermodulation | <-153dBc | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female | 24 x 4.3-10 female | 6 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
241.8 x 93.4 x 108.4 cm |
| 95.2 x 36.8 x 42.7 inch | |
|
Antenna Weight
|
105 kg |
| 231 lbs | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount |
| Compatible Pipe Diameter : | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 inch | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @150km/hr | N/lbf
Frontal: 1445/324.9 |
Pattern Results |
|
F-Band Horizontal Pattern (3.5GHz) |
F-Band Vertical pattern (3.5GHz) at tilt 0° and 15°
 |
| High-Band Horizontal Pattern (1.92GHz) |
High-band Vertical Pattern (1.92GHz) at tilt 0° and 15°
|
Low-Band Horizontal Pattern (0.8GHz) |
Low-band Vertical Pattern (0.8GHz) at tilt 0° and 20°
 |
