Description
Lens Technology Enabled™ Multi-Beam Tri Band Base-Station Antenna utilizes a patented spherical lens design with 4 isolated F Band (3300MHz–4200MHz) cross-polarized beams, 4 isolated High Band (1695MHz–2690MHz) cross-polarized beams, and 2 isolated Low Band (617MHz–896MHz) beams. Each beam has 4 ports to support 4×4 MIMO.
RET for F Band & High Band beams: 0°–20°.
RET for Low Band beams: 0°–40°.
Specifications
Technical Specifications Per Beam |
|||
| Frequency | 3300-4200 MHz | 1695-2690 MHz | 617-896 MHz |
| Gain | 19 dBi | 19.5 dBi | 13.5 dBi |
| VSWR | <1.5:1 | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° | 120° |
| Horizontal Beamwidth (10dB) | 34° | 30° | 60° |
| Horizontal Beamwidth (3dB) | 19° | 17° | 34° |
| Vertical Beamwidth (10dB) | 34° | 30° | 60° |
| Vertical Beamwidth (3dB) | 19° | 17° | 34° |
| Beam Cross-over | 7 dB typical | 10 dB typical | 10 dB typical |
| Total Number of Beams | 4 | 4 | 2 |
| Number of Ports per Beam | 4 | 4 | 4 |
| Number of Ports Total | 16 | 16 | 8 |
| Tilt Per Cross-Pol (RET) | 0°-20° | 0°-20° | 0°-40° |
| First Sidelobe Level | <-16 dB | <-16 dB | <-16 dB |
| Front to Back Ratio | >28 dB | >28 dB | >28 dB |
| Isolation Port to Port – Polarization | >28 dB | >28 dB | >28 dB |
| Isolation Port to Port – Beam | >28 dB | >28 dB | >28 dB |
| Power Rating | 150 W per port | 150 W per port | 150 W per port |
| Intermodulation | <-153 dBc | <-153 dBc | <-153 dBc |
| Impedance | 50 ohm | 50 ohm | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female | 16 x 4.3-10 female | 8 x 4.3-10 female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
241.8 x 61.7 x 72 cm |
| 95.2 x 24.3 x 28.4 in | |
|
Antenna Weight
|
72kg/158.7lbs [w/o Bracket] |
| 73.6kg/162.3lbs [w/Bracket] | |
| Radome Material | Fiber Glass |
|
Mounting
|
Standard pipe mount |
| Compatible Pipe Diameter : | |
| 6.1 – 11.4 cm | |
| 2.4 – 4.5 in | |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind Load @ 150 km/h
|
Frontal: 1050 N / 236.1 lbf |
| Lateral: 1631 N / 366.7 lbf | |
| Rear: 1232 N / 277 lbf | |
Pattern Results |
|
| F-Band Horizontal Pattern (3.6GHz)
|
F-Band Vertical pattern (3.6GHz) at tilt 0° and 20°
 |
| High-Band Horizontal Pattern (1.92GHz)
|
High-band Vertical Pattern (1.92GHz) at tilt 0° and 20°
 |

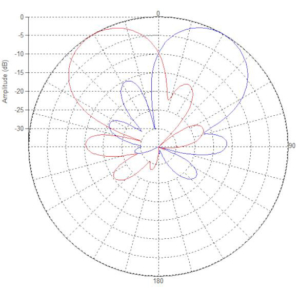

| Low-Band Horizontal Pattern (750MHz)
|
Low-Band Vertical Pattern 0° tilt and 40° tilt (750MHz)
 |
