Description

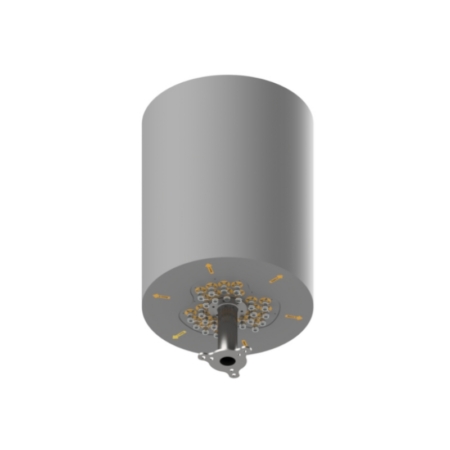

Matsing introduces Lens Technology Enabled™ Multi-Beam Antenna perfect for up to 6 sectors CRAN, Outdoor DAS, and Small Cell deployment. This antenna is capable of 4X4 MIMO with a coverage footprint of 360°. Each beam has four full-band ports to support 1695-2690 MHz. Factory-installed tilt settings are available for 0° & 30°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 1695 – 2690 MHz |
| Gain | 14dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 360° |
| Horizontal Beamwidth (10dB level) | 65° |
| Horizontal Beamwidth (3dB) | 38° |
| Vertical Beamwidth (3dB) | 38° |
| Beam Cross-over | 8dB typical |
| Total Number of Beams | 6 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 24 |
| Tilt Per Cross-Pol | 0°, 30° |
| First Sidelobe Level | <-15dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | >28dB |
| Isolation Port to Port – Beam | >28dB |
| Power Rating | 100W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Cylindrical Design
Diameter: Total Height: |
| Antenna Weight | 18.54 Kg / 40.87 Ibs |
| Bracket Weight | 2.56 kg/ 5.6 Ibs |
| Grsoss Weight | 21.1 Kg 46.5 Ibs |
| Radome Material | Fiber Glass |
| Mounting | 1 position pipe holder, bottom or side mountable.Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150km/h | 230 N / 52 lbf |
Pattern Results |
|
| Horizontal Pattern (2.0GHz)
|
Vertical pattern at 0° tilt and 30° tilt (2.0GHz)
|
