Description
Multi-Beam Cylindrical Base-Station Lens Antenna;
Two isolated low frequency (698-960 MHz) cross-polarized beams. Each beam has four ports to support 4×4 MIMO. RET (Smart Bias Tee & AISG 2.0) with 2-16° for each beam.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 698 – 960 MHz |
| Gain | 16.5 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB Level) | 35° |
| Horizontal Beamwidth (10dB Level) | 60° |
| Vertical Beamwidth (3dB) | 15° |
| Beam Cross-over | 10dB typical |
| Total Number of Beams | 2 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 8 |
| RET | 2° to 16° |
| First Upper Sidelobe Level | 15dB |
| Azimuth Sidelobe Level | 16dB |
| Front to Back Ratio | >28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 26dB |
| Power Rating | 200W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 8 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Antenna dimensions: 245.3 x 65 x 77 cm 96.6 x 25.6 x 30.3 inch |
| Antenna Weight | 61.90kg | 136.46lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/Ibf
Frontal: 1207/271 Lateral: 1413/317 Rear:1603/360 |
Pattern Results |
||
|
Horizontal Pattern (800MHZ)
|

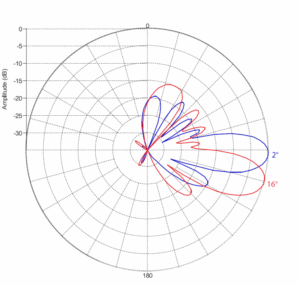

Vertical pattern at 2° tilt and 16° tilt (800 MHz) |
|
