Description
Lens Technology Enabled™ Multi-Beam Dual Band Base-Station Antenna utilizes a patented spherical lens design with 6 isolated F- Band (3300MHz 4200MHz) cross-polarized beams, 6 isolated High Band (1695 MHz – 2690 MHz ) cross-polarized beams, each F & H Band beams have 4 ports to support 4X4 MIMO.
RET for F Band & High Band Beams 0°-15°.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 3300-4200 MHz | 1695-2690 MHz |
| Gain | 21.5dBi | 21dBi |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB) | 23° | 23° |
| Horizontal Beamwidth (3dB) | 13° | 13° |
| Vertical Beamwidth (10dB) | 23° | 23° |
| Vertical Beamwidth (3dB) | 13° | 13° |
| Beam Cross-over | 10 dB typical | 10 dB typical |
| Total Number of Beams | 6 | 6 |
| Number of Ports per Beam | 4 | 4 |
| Number of Ports Total | 24 | 24 |
| Tilt Per Cross-Pol (Two adjustments per beam) | 0° to 15° | 0° to 15° |
| First Sidelobe Level | <-16 dB | <-15 dB |
| Front to Back Ratio | >28 dB | >28 dB |
| Isolation Port to Port – Polarization | >28 dB | >28 dB |
| Isolation Port to Port – Beam | >28 dB | >28 dB |
| Power Rating | 200 W per port | 200 W per port |
| Intermodulation | <-153 dBc | <-153 dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female | 24 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 184 x 93.4 x 108.4 cm 72.5 x 36.8 x 42.7 inch |
| Antenna Weight | 96.3 kg/212.3 lbs |
| Bracket Weight | 2.58 kg / 5.7 lbs |
| Gross Weight | 98.9 kg/218 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind load @ 150km/h
|
N/lbf
Frontal: 1095/246 |
Pattern Results |
|
|

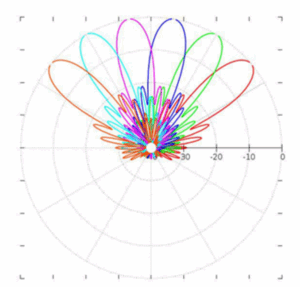

F-Band Horizontal Pattern (3.5GHz)
|

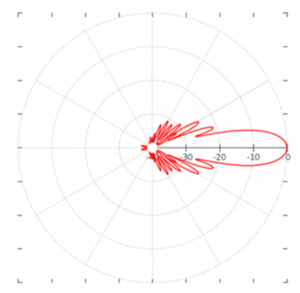

F-Band Vertical pattern (3.5GHz) at tilt 0° and 15°
|
| High-Band Horizontal Pattern (1.92GHz)
|
High-band Vertical Pattern (1.92GHz) at tilt 0° and 15°
|
