Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for multi-sector cell site deployments, utilizes a patented spherical lens design with 4 isolated F-Band (3300–4200MHz) cross-polarized beams.
Each Beam has 4 ports or 4×4 MIMO and RET capability from 0° – 15°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3300 – 4200 MHz |
| Gain | 23dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 34° |
| Horizontal Beamwidth (3dB level) | 19° |
| Total Number of Beams | 4 |
| Azimuth Sidelobe Level | -18dB |
| Vertical Beamwidth (3dB level) | 6.5° |
| Beam Cross-over | 8 dB typical |
| Tilt Per Beam Remote Electrical Tilt (AISG 2.0) |
0°- 15° |
| Upper Side Lobe Suppression | 16dB |
| Front to Back Ratio | 28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 16 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Antenna dimensions: 158.7 x 36 x 42.6 cm 62.5 x 14.2 x 16.8 inch |
| 15 kg /33 lbs | |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @150 km/hr | N/lbf Frontal: 449/100.9 Lateral: 614/ 138 Rear : 505/ 113.5 |
Pattern Results |
||
|

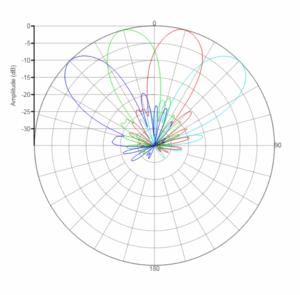

Horizontal Pattern (3.6GHz) |

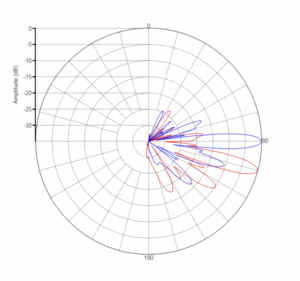

Vertical Pattern at 0° and 15° (3.6GHz)
|
|
