Description

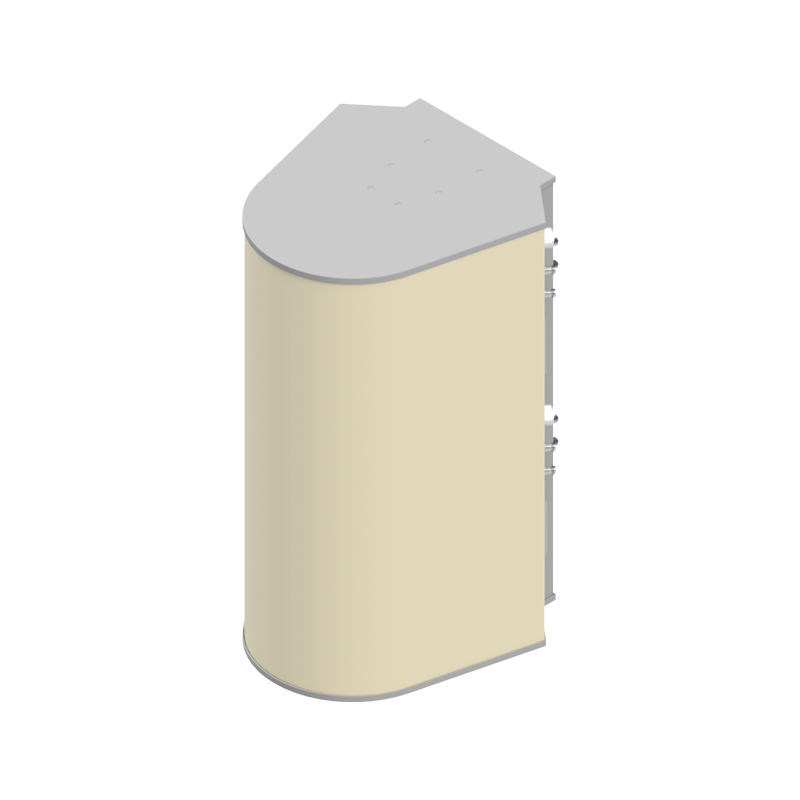

Multi-Beam Wide Band Spherical Lens Antenna:
• 4 rows of 4 dual-polarized beams to cover 5.125 – 7.125 GHz.
• Each beam has 4 ports to provide 4×4 MIMO.
• Designed for high capacity wireless networking (Wi-Fi 6E,Wi-Fi 7,
Wi-Fi 8).
Specifications
Technical Specifications Per Beam |
|
| Frequency | 5.125 – 7.125 GHz |
| Gain | 24.5dBi |
| VSWR | < 2:1 (RL > 10 dB) |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 48° |
| Vertical Coverage | 40° |
| Horizontal Beamwidth (8dB level) | 11° |
| Horizontal Beamwidth (3dB level) | 7° |
| Vertical Beamwidth (8dB level) | 11° |
| Vertical Beamwidth (3dB level) | 7° |
| Beam Cross-over | 8dB |
| Total Number of Beams | 16 |
| Number of Ports Total | 64 |
| Beam Tilt (Factory Set) | Fixed |
| Sidelobe Level | -16dB |
| Front to Back Ratio @ 180° | 30dB |
| Isolation Port to Port – Polarization | 25dB |
| Isolation Port to Port – Beam | 25dB |
| Power Rating | 10W per port |
| Impedance | 50 ohm |
| Connector Quantity and Type | 64 x 4.3-10 Female |
Mechanical Data |
|
|
Dimensions (H x W x D)
|
Spherical Lens diameter: 45 cm / 18 inch |
| Antenna dimensions: | |
| 98.8 x 61.7 x 73.7 cm | |
| 38.9 x 24.3 x 29 inch | |
| Antenna Weight | 30 kg / 66 lbs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount |
| Compatible Pipe Diameter | 6.1 – 11.4 cm / 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind Load @ 150 km/h | TBD |
Pattern Results @ 6GHz |
|

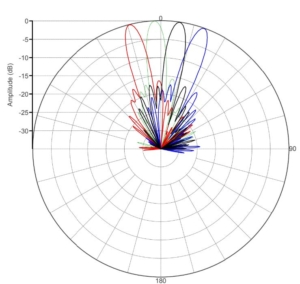

| Horizontal Pattern, Beam rows 1, 3
|
Horizontal Pattern, Beam rows 2, 4
|

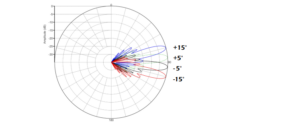

| Vertical Pattern
|
|
