Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for multi-sector cell site deployments, utilizes a patented spherical lens design with 4 isolated F-Band (3300–4200MHz) cross-polarized beams. Each Beam has 2 ports or 2X2 MIMO and RET capability from 0° – 20°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3300 – 4200 MHz |
| Gain | 20dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (10dB level) | 34° |
| Horizontal Beamwidth (3dB level) | 19° |
| Vertical Beamwidth (10dB level) | 34° |
| Vertical Beamwidth (3dB level) | 19° |
| Beam Cross-over | 8dB typical |
| Total Number of Beams | 4 |
| Number of Ports per Beam | 2 |
| Number of Ports Total | 8 |
| Tilt Per Beam Remote Electrical Tilt (AISG 2.0) |
0°- 15° |
| Upper Side Lobe Suppression | 16dB |
| Azimuth Sidelobe Level | -18dB |
| Front to Back Ratio | 28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 8 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | Antenna dimensions: 55 x 36.3 x 34.6 cm 21.6 x 14.3 x 13.6 inch |
| Antenna Weight | 11.9kg/26.2lbs [w/o Bracket] 13.4kg/29.5lbs [w/Bracket] |
| Bracket Weight | 1.58 kg | 3.5 Ibs |
| Radome Material | Fiber Glass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 127.3 / 28.6 Lateral: 182 / 41 Rear: 130/ 29 |
Pattern Results |
|
| Horizontal Pattern (3.6GHz)
|

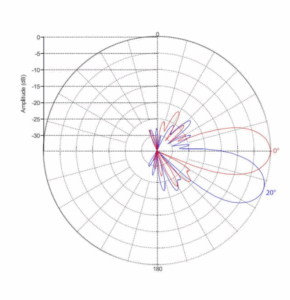

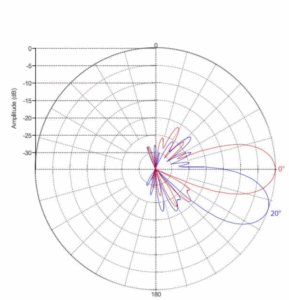

Vertical Pattern at 0° and 20° (3.6 GHz)
|
