Description
Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for 6 high-band sectors and 3 low-band LTE cell site deployment for best CINR results. Utilizes a patented spherical lens design with 6 isolated high-frequency (1695- 2690MHz) cross-polarized beams and 3 isolated low-frequency (698- 960MHz) cross-polarized beams. Each high-frequency beam and low-frequency beam is made of two
independent antennas and has 4 ports. There are two independent tilt settings per beam (0-15° for HB and 0-20° for LB) for each pair of cross-polarized elements.
Specifications
Technical Specifications Per Beam |
||
| Frequency | 1695-2690 MHz | 698-960MHz |
| Gain | 21dBi | 16dBi |
| VSWR | <1.5:1 | <1.5:1 |
| Polarization | Dual Slant ±45° | Dual Slant ±45° |
| Horizontal Coverage | 120° | 120° |
| Horizontal Beamwidth (10dB level) | 22° | 43° |
| Horizontal Beamwidth (3dB level) | 13° | 25° |
| Vertical Beamwidth (10dB level) | 22° | 43° |
| Vertical Beamwidth (3dB level) | 13° | 25° |
| Beam Cross-over | 10dB typical | 10dB typical |
| Total Number of Beams | 6 | 3 |
| Number of Ports Per Beam | 4 | 4 |
| Total Number of Ports | 24 | 12 |
| Tilt Per Cross-Pol | 0° to 15° | 0° to 20° |
| First Sidelobe Level | <-16dB | <-15dB |
| Front to Back Ratio | >28dB | >28dB |
| Isolation Port to Port – Polarization | >28dB | >28dB |
| Isolation Port to Port – Beam | >28dB | >26dB |
| Power Rating | 200W per port | 250W per port |
| Intermodulation | <-153dBc | <-153dBc |
| Impedance | 50 ohm | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female | 12 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 242 x 93.5 x 108.4 cm 95.2 x 36.8 x 42.7 inch |
| Antenna Weight | 115 kg 253.5 lbs |
| Radome Material | Fiber Glass |
| Mounting | 2 position pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
|
Wind loading @ 150km/hr
|
Frontal: 1705.9 N/383.5 Ibf |
| Lateral: 1780.5 N/400.3 lbf | |
Pattern Results |
|
|

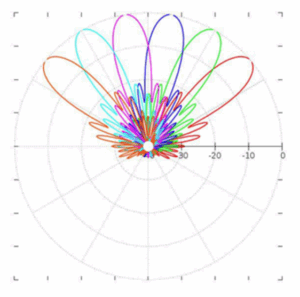

High-Band Horizontal Pattern (1.80GHz)
|

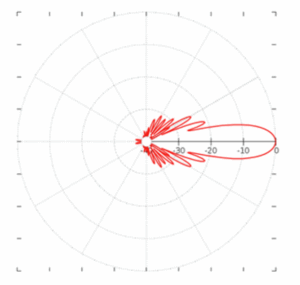

High-Band Vertical pattern 0° tilt and 15° tilt (1.80GHz)
|

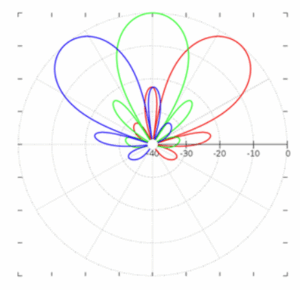

| Low-Band Horizontal Pattern (750MHz)
|

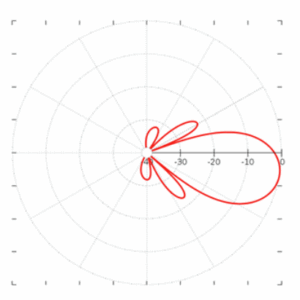

Low-Band Vertical Pattern 0° tilt and 20° tilt (750MHz)
|
