Description

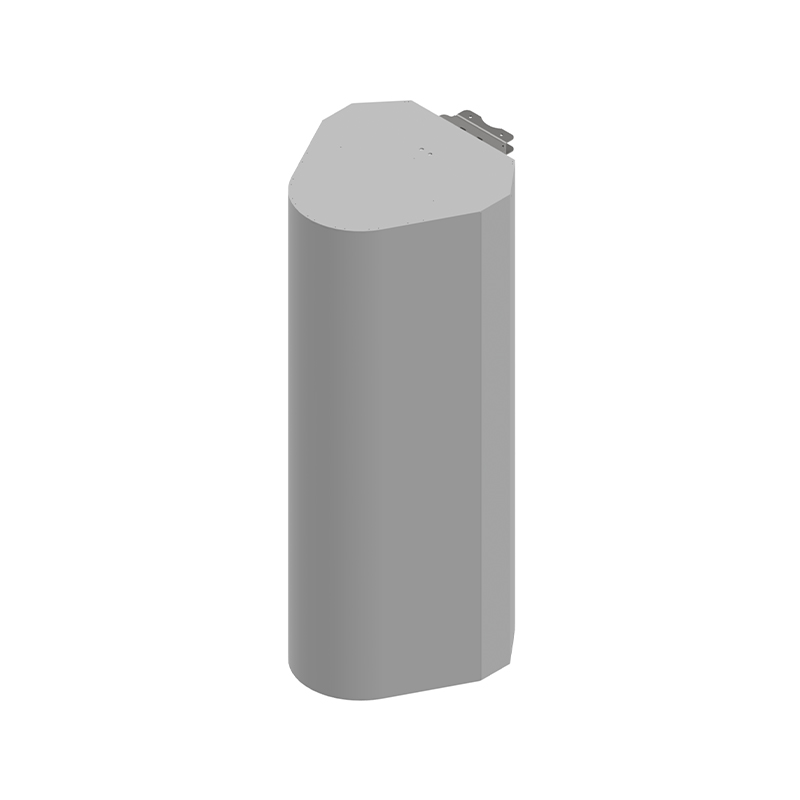

Lens Technology Enabled™ Multi-Beam Base-Station Antenna perfect for multi- sector cell site deployments, utilizes a patented cylindrical lens design with 6 isolated C-Band (3700– 4200 MHz) cross- polarized beams. Each Beam has 4 ports or 4×4 MIMO and RET capability from 2° – 10°.
Specifications
Technical Specifications Per Beam |
|
| Frequency | 3700 – 4200 MHz |
| Gain | 23.8 dBi |
| VSWR | <1.5:1 |
| Polarization | Dual Slant ±45° |
| Horizontal Coverage | 120° |
| Horizontal Beamwidth (3dB Level) | 12° |
| Vertical Beamwidth (3dB level) | 6.5° |
| Beam Cross-over | 8dB typical |
| Total Number of Beams | 6 |
| Number of Ports per Beam | 4 |
| Number of Ports Total | 24 |
| Tilt Per Beam Remote Electrical Tilt (AISG 2.0) |
2° – 10° |
| 1st Upper Side Lobe Suppression | 15dB |
| Azimuth Sidelobe Level | -18dB |
| Front to Back Ratio @ 180° | 28dB |
| Isolation Port to Port – Polarization | 28dB |
| Isolation Port to Port – Beam | 28dB |
| Power Rating | 150W per port |
| Intermodulation | <-153dBc |
| Impedance | 50 ohm |
| Connector Quantity and Type | 24 x 4.3-10 female |
Mechanical Data |
|
| Dimensions (H x W x D) | 1480.8 x 561.3 x 648 mm 58.3 x 22.1 x 25.5 inch |
| Antenna Weight | 40kg | 88.2lbs |
| Radom |
Fiberglass |
| Mounting | Standard pipe mount Compatible pipe diameter: 6.1 – 11.4 cm 2.4 – 4.5 inch |
Environmental Ratings |
|
| Humidity | 95% RH @ +30°C |
| Temperature | -40°C to +70°C |
| Wind load @ 150 km/h | N/lbf Frontal: 536/120.5 Lateral: 731/164.3 Rear: 619/139.2 |
Pattern Results |
|
Horizontal Pattern (3.7GHz) |

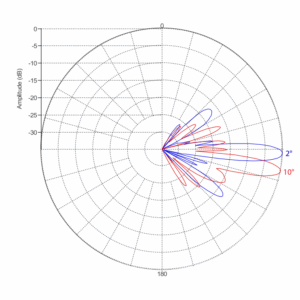

Vertical Pattern at 2° and 10° (3.7GHz)  |
